10K Versymmetric VLE Two-Post Lift

10K Versymmetric VLE Two-Post Lift

The 10K Versymmetric VLE Two-Post Lift Versymmetric technology brings flexibility to any service bay while also ensuring the safe lifting of any vehicle. Versymmetric lift technology, established in 1992 by Challenger, combines a Symmetric and an Asymmetric lift into one!

Our Versymmetric lifts safely accommodate vehicles from compact cars to full-size trucks by using heavy-duty columns and arms. Thus, you can service a wide range of vehicles from the same service bay.

Whether you’re looking for efficiency or simply short on space, this Challenger Lift is right for you.

• Challenger’s Versymmetric Technology, with a 3-Stage offset front arm design, allows for the safe symmetric lifting of trucks or asymmetric lifting of other small vehicles within the same service bay.
• Direct Spot Technology, created by the Versymmetric offset arms, allows you to save time on spotting a short wheelbase vehicle by eliminating the need to struggle with the tires.

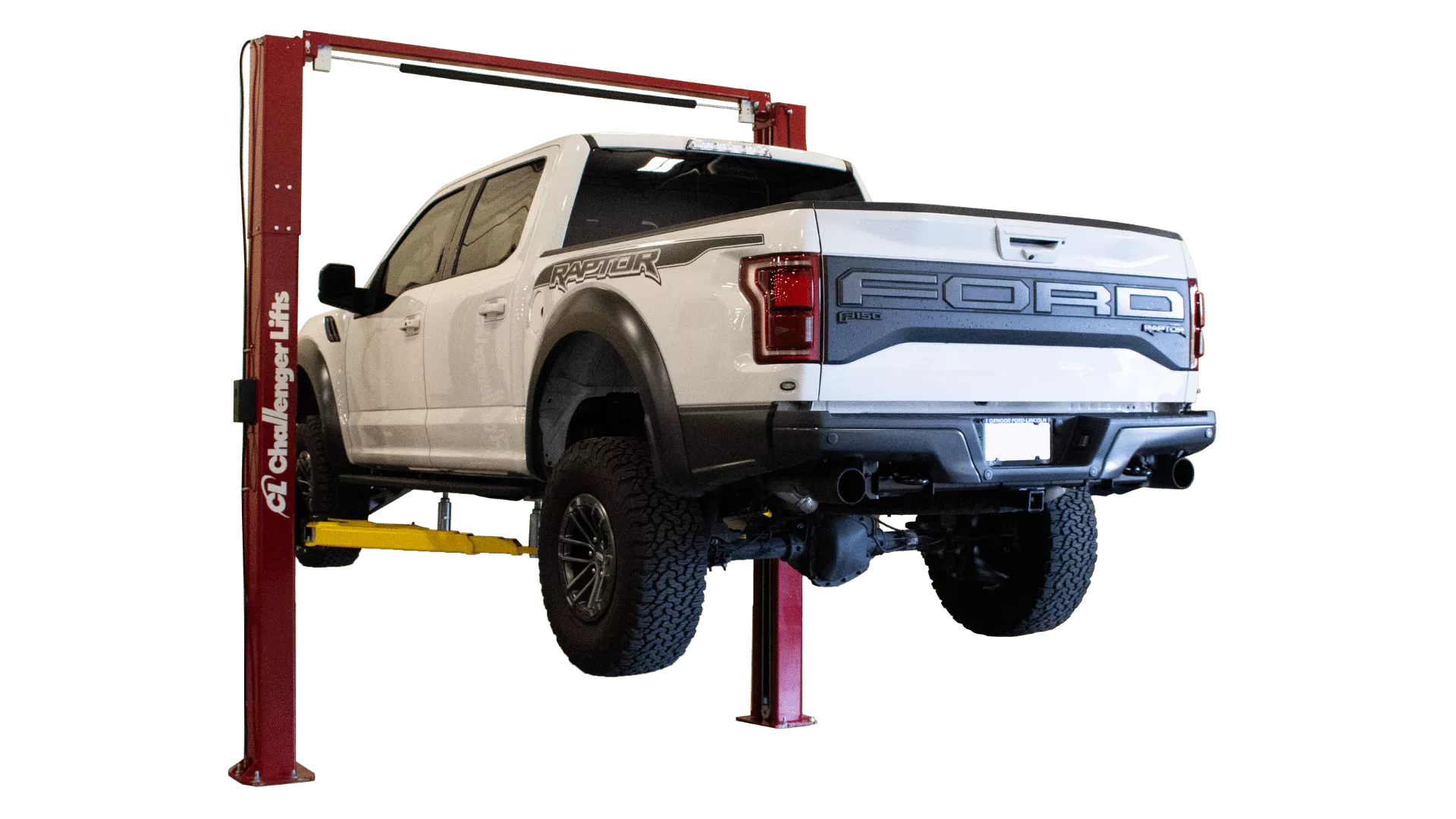

Any Vehicle. One Bay. The left image shows a standard passenger car best lifted asymmetrically to allow the technician easy access to the car’s interior. The right image shows a truck with a possible “load” in the back. This type of vehicle lifts best symmetrically as the front arms position forward, distributing the weight evenly between the two columns. While each image demonstrates a different way of lifting, with Versymmetric, both methods are possible, all from one bay.

Features

• 3-Stage Versymmetric front arms and 2-Stage rear arms provide a wide arm sweep for asymmetric and symmetric lifting in the same service bay.
• 11.875” standard height fits in service bays with 12’ ceiling height.
• Double telescoping screw pads with rubber foot pad.
• Padded overhead shut-off system prevents vehicle damage.
• Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL series lifts is now standard on the VLE10.
• Rubber door guards protect the vehicle from door damage.
• Premium powder coat finish provides long-lasting durability.
• Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
