SKU: 30-5702F
AEM CD-7G Carbon Flush Digital Dash Display with Internal 20Hz GPS & Antenna
Take your vehicles data display to the next level with the AEM CD-7G Carbon Flush Digital Dash Display. This premium 7-inch full-color digital dash combines a sleek, low-profile carbon fiber design with built-in 20Hz GPS and a high-resolution daylight-readable screen. Designed for flush-mount or in-dash installations with tight tolerances, the CD-7G delivers professional-grade performance for track cars, race vehicles, and high-performance street builds. With seven programmable LED shift lights, full CAN bus compatibility, and advanced display customization, it provides everything you need in one modern, lightweight package.
Key Features
- 7″ Full-Color Daylight Readable Display 800×480 resolution with 1000cd/m brightness and anti-glare filter
- Built-in 20Hz GPS Includes internal GPS receiver and antenna for track mapping, lap timing, and speed
- Seven Programmable LED Shift Lights User-defined RPM range with dimmable brightness
- Flush-Mount Carbon Fiber Design Sleek, lightweight flow-molded carbon fiber composite enclosure
- Advanced CAN Bus Support Works with AEMnet and most aftermarket/non-AEM CAN systems
- Customizable Pages & Alarms Up to 7 programmable pages with custom graphics and warning icons
- IP65 Water Resistance Built tough for open-cockpit and harsh environments
- Remote Button Support Requires separate button kit (PN 30-3610) for page navigation
Specifications
| Detail | Value |
|---|---|
| Brand | AEM |
| Type | CD-7G Carbon Flush Digital Dash with GPS |
| Screen Size | 7″ Diagonal (800×480 Resolution) |
| GPS | Built-in 20Hz GPS with Antenna |
| Datalogging | No (Logging version available separately) |
| Enclosure Material | Carbon Fiber Composite |
| Water Resistance | IP65 |
| LED Shift Lights | 7 Programmable & Dimmable |
| CAN Bus Support | AEMnet + Third-Party CAN Compatible |
| Country of Origin | United States |
| Warranty | Manufacturers 1-Year Warranty |

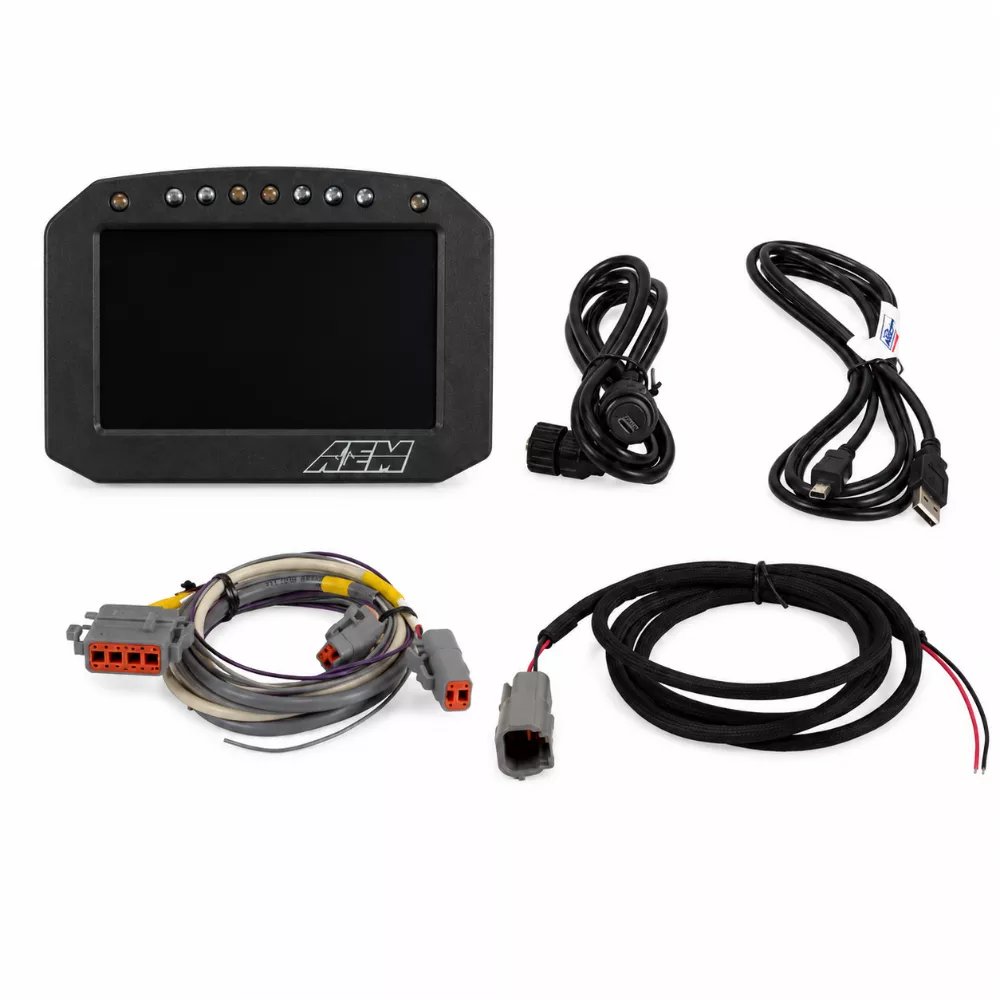

Whats Included
- AEM CD-7G Carbon Flush Digital Dash Display with GPS
- Wiring Harness
- Mounting Hardware
- Installation Instructions
Product Notes
- Remote Button Kit (PN 30-3610) is required for page navigation and is sold separately
- Professional installation is recommended
- Compatible with carbureted engines and pre-2008 ECUs using AEM CAN Sensor Modules
- Layout files are interchangeable with other CD-7 Carbon dashes
This Part Fits
| Application | Notes |
|---|---|
| Universal / Custom Builds | Works with most performance and race vehicles |
| Modern CAN-Based Vehicles | Plug & Play with 2008+ factory ECUs (OBDII adapter sold separately) |
| Carbureted & Pre-2008 Vehicles | Compatible using AEM 22-Channel or 6-Channel CAN Sensor Modules |
Why Choose AEM?
- Industry leader in performance electronics and data acquisition systems
- Proven reliability in professional motorsport and high-performance applications
- Advanced features including GPS, customizable displays, and robust CAN integration
- Backed by strong technical support and a 1-year warranty
Frequently Asked Questions
- Q: Does this dash include data logging?
- A: No. The CD-7G model does **not** include onboard data logging. A logging version (CD-7L) is available separately.
- Q: Do I need the remote button kit?
- A: Yes. The flush-mount version does not have onboard buttons, so the Remote Button Kit (PN 30-3610) is required.
- Q: Can this work with my factory ECU?
- A: Yes. It supports most 2008+ factory ECUs via the optional OBDII CAN adapter cable.
- Q: Is this a flush-mount dash?
- A: Yes. The CD-7G is designed for flush or in-dash installation with a low-profile carbon fiber enclosure.
