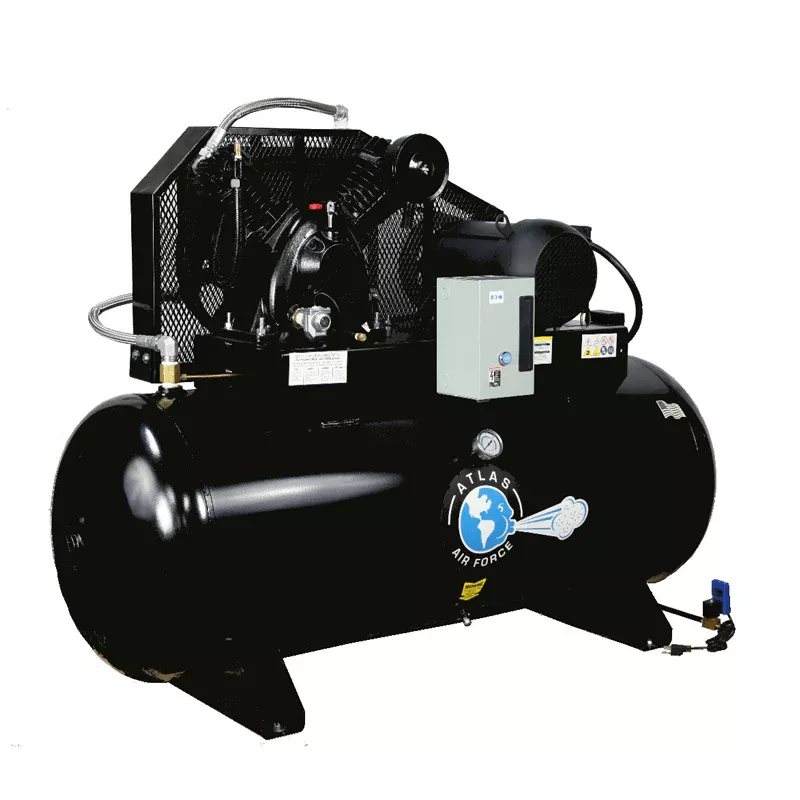

The Atlas Air Force AF10 10HP 120 Gallon Air Compressor (3 Phase) is a heavy-duty, commercial-grade solution built for high-demand automotive shops, body shops, and industrial environments that require maximum air output and continuous performance. Designed for reliability and efficiency, this unit delivers powerful airflow for running multiple air tools and equipment simultaneously.
Equipped with a robust 10 horsepower motor and a 3-cylinder, 2-stage compressor pump, the AF10 provides consistent high-volume air delivery across a 145175 PSI operating range. Its oversized 120-gallon horizontal tank, proudly made in the USA, ensures extended run times and reduced cycling, making it ideal for busy shop environments.
Built for Performance & Longevity
The AF10 includes Atlas’s “Plus Package,” featuring an automatic low oil shut-off, automatic tank drain, and an air-cooled aftercooler. These enhancements help extend the life of the compressor while improving air quality and reducing moisture in the system.
Additional features like a magnetic starter, continuous run option, and vibro-isolation pads reduce wear on components and improve operational efficiency. The heavy-duty construction and belt-driven design ensure long-term durability under daily commercial use.
Key Features
- 10 HP 3-Phase Motor Built for high-demand commercial applications
- 3-Cylinder, 2-Stage Pump Consistent high-volume air delivery
- 120 Gallon Horizontal Tank (Made in the USA)
- “Plus Package” Included Aftercooler, low oil shut-off, auto tank drain
- 145175 PSI Operating Range
- Continuous Run Option to reduce motor start-stop stress
- Magnetic Starter for improved electrical control and longevity
- Vibro-Isolation Pads to minimize vibration
- Finned Tank Inlet Tube to reduce moisture buildup
- Heavy-Duty Metal Belt Guard
- Freight Prepaid (FPD)
Designed for High-Output Shop Use
The Atlas AF10 is engineered for environments where air demand is constant and reliability is critical. Its high CFM output makes it ideal for running multiple tools at once, including impact wrenches, sanders, grinders, and paint equipment. The 3-phase electrical setup ensures efficient power delivery and smoother operation in commercial settings.
| Specifications | Details |
|---|---|
| Motor | 10 HP |
| Power Requirement | 220V, 3-Phase, 30 Amp Breaker Required (10 Gauge Wire Recommended, Max 70 ft) |
| CFM @ 90 PSI | 37 |
| CFM @ 175 PSI | 35 |
| Pressure Range | 145175 PSI |
| Tank Capacity | 120 Gallons (Horizontal) |
| Air Outlet Size | 3/4″ NPT |
| Overall Dimensions | 72″ L x 32″ W x 52″ H |
| Compressor Pump | 3-Cylinder, 2-Stage |
| Shipping Weight | 1,000 lbs |
