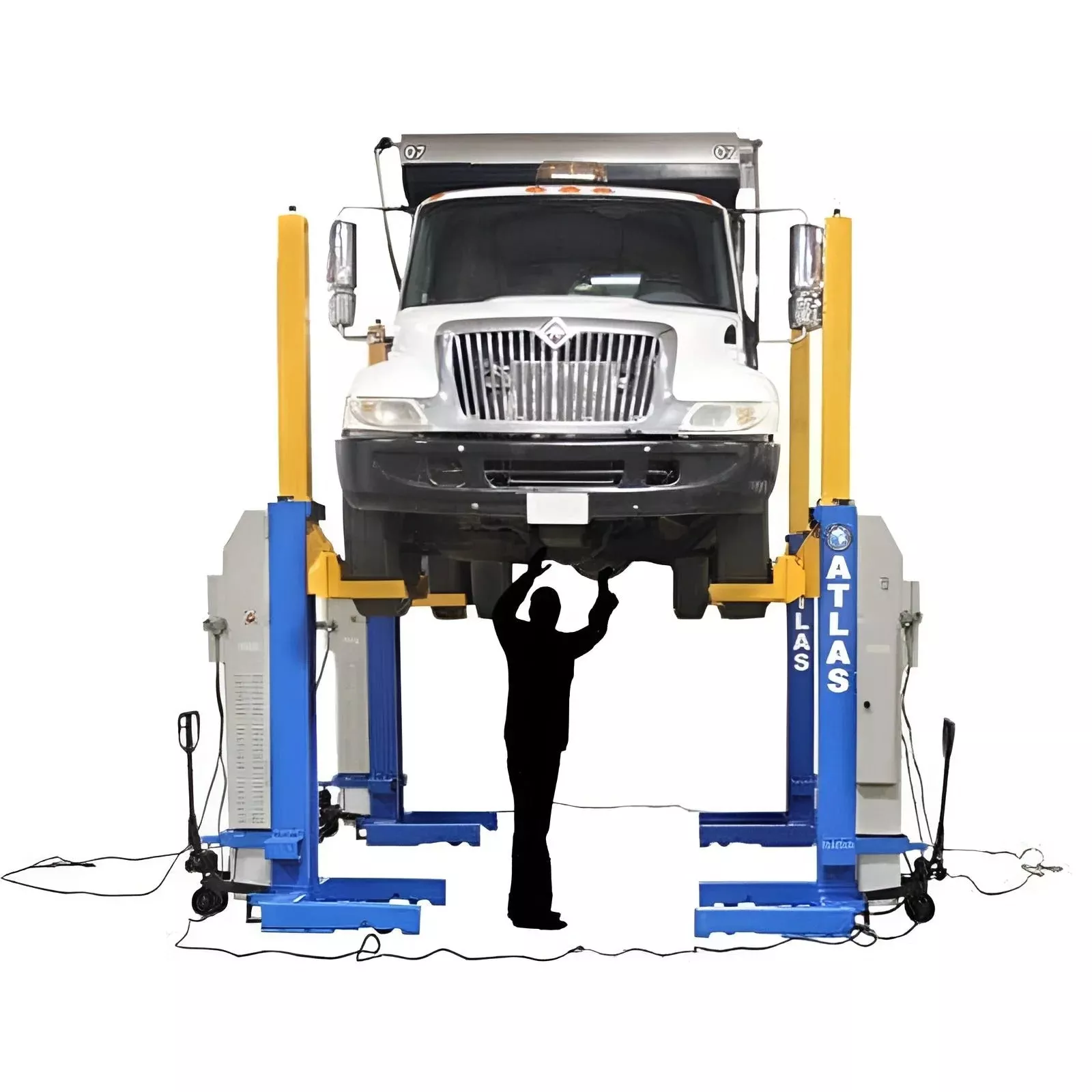

Atlas ALI Certified 66,000 lb Battery-Powered Mobile Column Lift System

The Atlas ALI Certified Battery Powered Mobile Column Lift System (66,000 lb Capacity) is a commercial-grade, heavy-duty lifting solution designed for trucks, buses, and fleet vehicles that require reliable lifting power with maximum flexibility. Ideal for shops with limited space or high workflow demands, this system allows you to lift large vehicles without the need for permanent lift installations.

Each column is powered by a 24V DC motor with dual rechargeable batteries, enabling fully wireless operation while maintaining synchronized lifting across all columns. This allows technicians to position the system exactly where needed, whether inside the shop or outdoors on a properly rated concrete surface.

Built for Capacity & Expandability

This ALI certified system delivers a total lifting capacity of 66,000 lbs using four columns, with each column rated at 16,500 lbs. The system is expandable, allowing you to increase capacity to 99,000 lbs with six columns or up to 132,000 lbs with eight columns, making it a scalable solution as your shop grows.

An advanced electronic synchronization system ensures all columns lift evenly, while integrated LCD screens display real-time lifting height for precise control. Dual safety systems, including hydraulic flow control and mechanical locks, provide secure and dependable operation.

Key Features

• ALI Certified for verified safety and performance
• 66,000 lb Total Capacity (Expandable to 99,000 lbs or 132,000 lbs)
• 16,500 lb Capacity Per Column
• Battery Powered System with 24V DC motors and dual batteries per column
• Simultaneous Column Operation with electronic synchronization
• LCD Display on each column showing exact lifting height
• Dual Safety System hydraulic flow control and mechanical locks
• Portable Design for indoor or outdoor use on proper concrete surfaces
• Adjustable Forks accommodate tire diameters from 19″ to 44″
• Emergency Stop Button on every column
• Includes four column connecting cables
• 2-Year Limited Warranty

Designed for Flexibility & Fleet Service

The Atlas mobile column lift system is engineered for maximum versatility. Each column features a built-in pallet jack system for easy mobility and can be stored when not in use, helping maximize available shop space. The battery-powered design eliminates the need for constant power connections, making it ideal for both indoor bays and outdoor service areas.

This system is ideal for fleet maintenance facilities, truck repair shops, and service centers that require a dependable and mobile lifting solution for heavy vehicles.

Documents

• Manual
