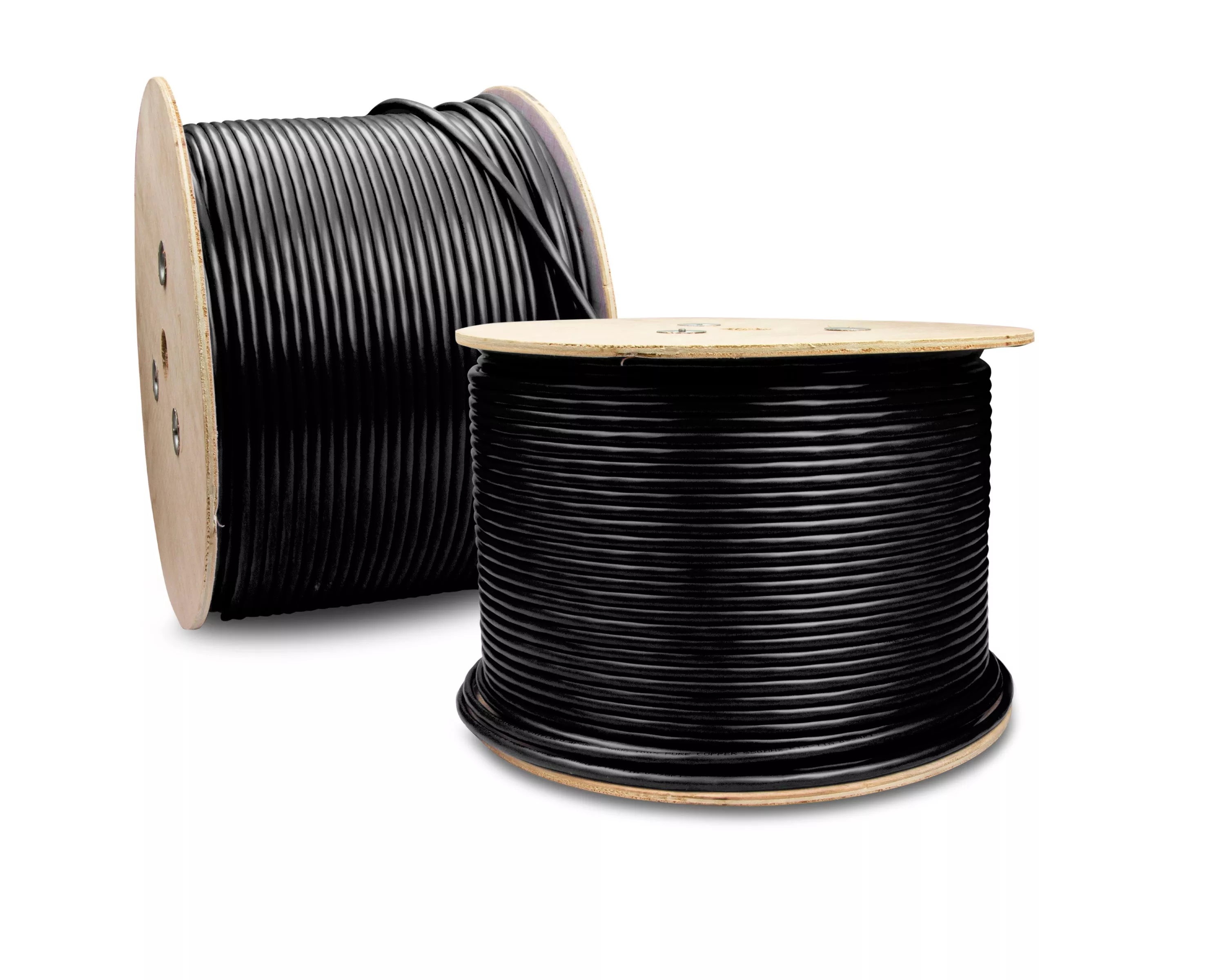

The Triplett Model CAT6AS-1000BK is a high performance CAT6A FTP Shielded 23AWG Cable suitable for speed applications up to 10GS. It features a PVC jacket with Al foil and drain wire. CM Rated, exceeds TIA/EIA-568.B.2, ISO/IEC 11801. 1000′. Black. ROHS compliant/UL listed.
CATEGORY: CAT6a Shielded Cable
Features
- High performance suitable for 10GS speed applications
- PVC Jacket and CM Rated
- Al foil with drain wire
- Exceeds TIA/EIA-568.B.2, ISO/IEC 11801
- RoHS compliant/UL Listed
Specifications
| Rated Temperature | 70 C |
| Rated Voltage | 30V |
| Conductor Material | Bare Copper (99.99%) |
| Conductor Diameter | 4 2 1/0.56 0.01mm |
| Insulation/Average Thickness | HDPE/0.21mm |
| Insulation Diameter | 1.01 0.03mm |
| Shielding | STP (AI Foil) |
| Jacket | PVC (Fire Retardant) |
| Jacket Average Thickness | 0.61 0.01mm |
| Outer Diameter | 6.5 0.1mm |
| PVC Tensile Strength (Mpa) | 13.8 |
| Bending Radius | 4xOD(without load) |
| Temperature Range | During Operation: -40C ~ 75C |
| Insulation Resistance | Min 5000mega ohms-KM at 20 C |
| Dielectric Test | 1000V DC/1min ; No Breakdown |
| Propagation | NVP 69% |
| Impedance | 100 15 Ohms at 20 C |
| Frequency | 500Mhz |
| Delay Skew | 45nS |
