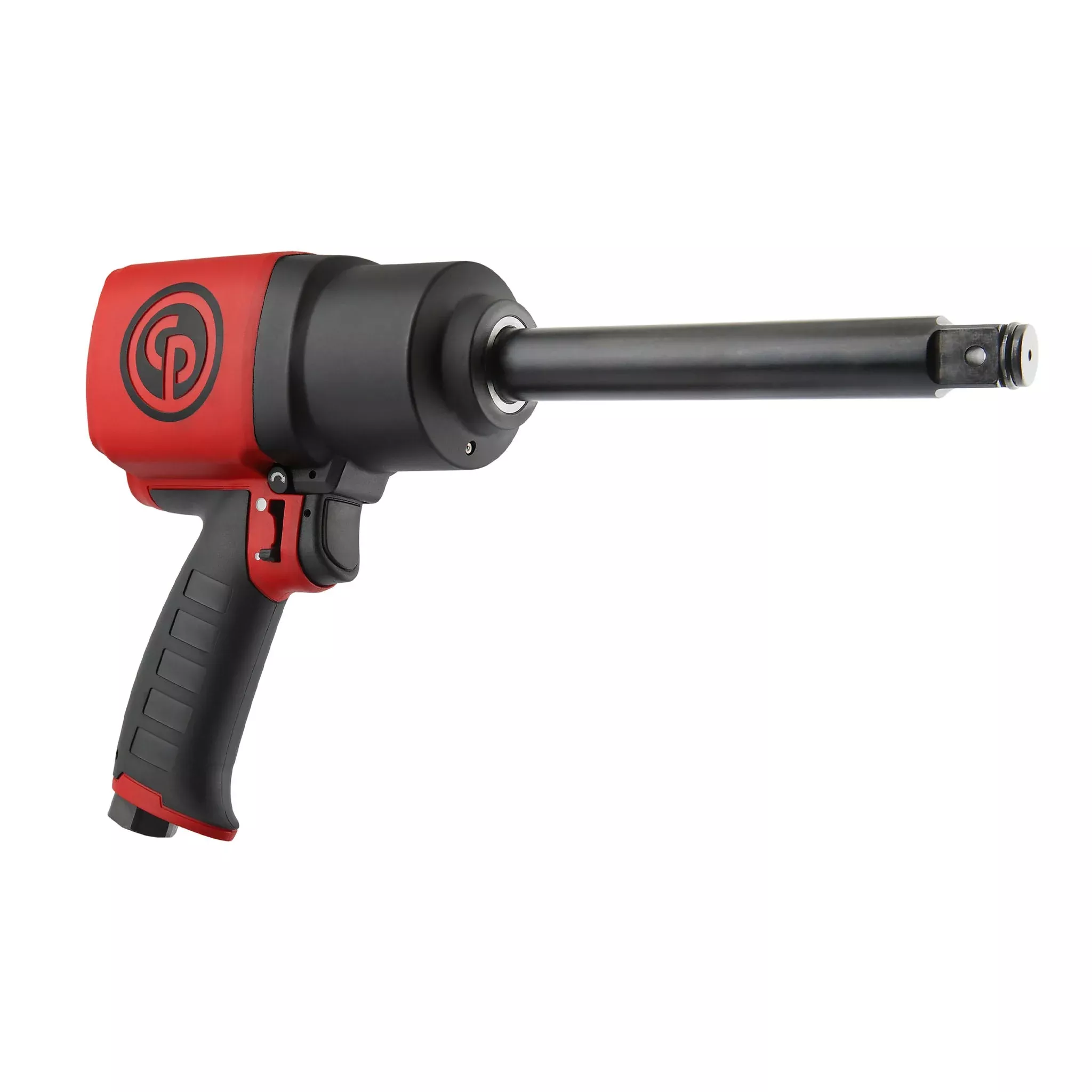

Chicago Pneumatic CP-7769-6 3/4″Impact Wrench, 6″ Anvil
With all controls within reach, the CP7769-6 series 3/4″ impact wrench makes it possible for all operators working in the field of maintenance applications to toggle between forward & reverse and adjust the power with one hand.
Designed for general maintenance, these 3/4″ impact wrenches are comfortable and efficient to use in workshop environment thanks to their one-hand power control and forward / reverse selector – S2S technology. With its maximum torque in reverse up to 1,440 ft.lbs / 1,950 Nm, the CP7769-6 series offers high productivity. In addition, the twin hammer impact mechanism and its composite housing offer high durability while being both lightweight and compact.
Features
- 1,440 ft.lbs (1,950 Nm) of max torque in reverse position for high productivity.
- Composite housing and twin hammer impact mechanism for high durability.
- Due to its composite motor housing, it is both lightweight and compact, offering improved comfort.
- One-hand power adjustment and reverse system – S2S technology – thereby limiting wrist and arm fatigue.
- 6″ Anvil for extended reach.
Specifications
| Maximum Forward Torque | 1080 Ft-lb |
| Minimum Forward Torque | 300 Ft-lb |
| Maximum Reverse Torque | 1440 Ft-lb |
| Air Inlet Thread Size | 3/8″ NPT |
| Impact Mechanism | Twin Hammer |
| Body Material | Composite |
| Output Drive Size | 3/4″ – Square |
| Free Speed | 6,500 RPM |
Don’t forget to keep your tools lubricated! Use Marvel Air Tool Oil
Literature
Operation Manual
Interchangeable Part Numbers
8941077697, CP7769-6
