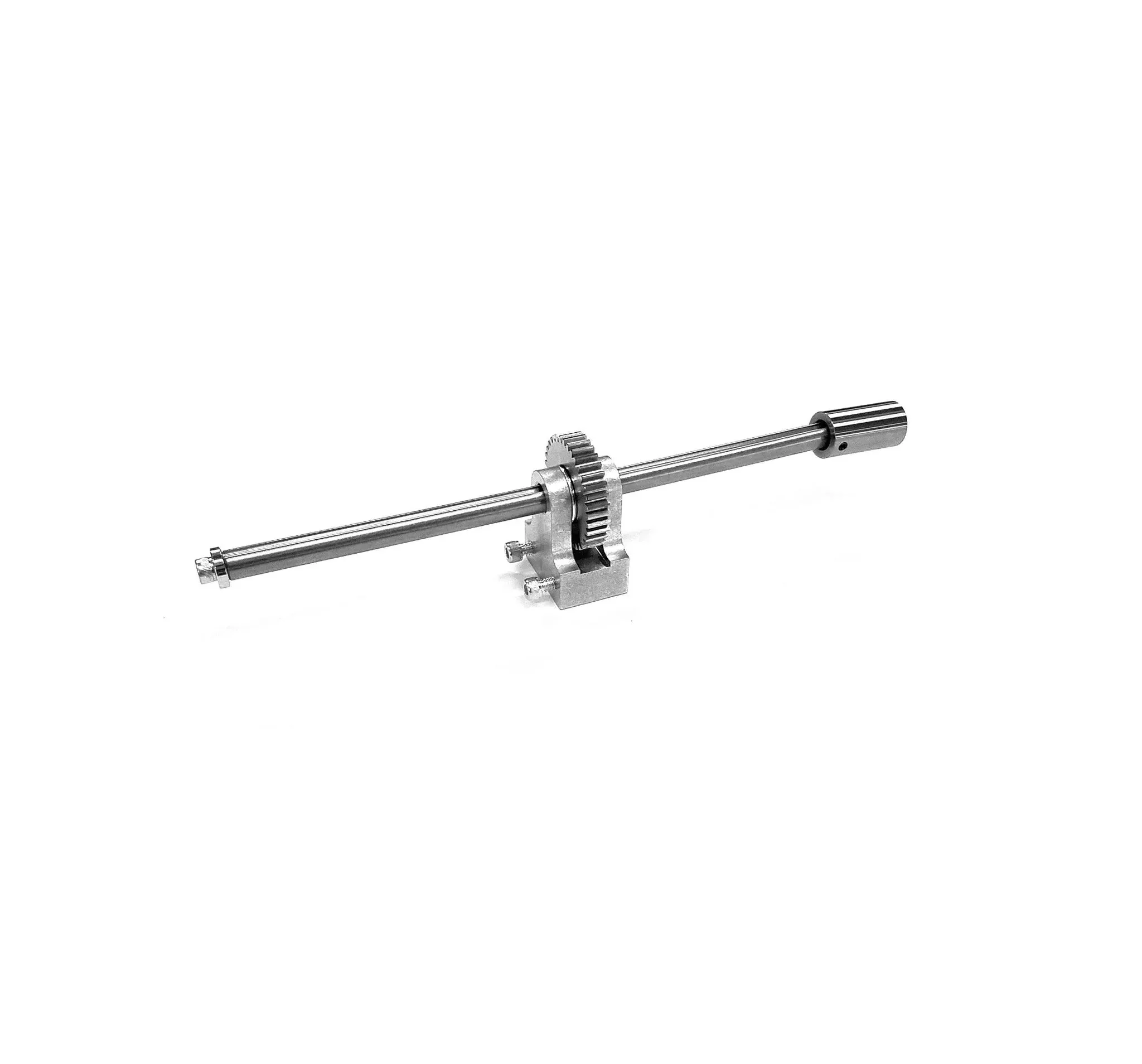

Trap Assembly
Includes:
| 4774 | Gear for Trap Assembly (Not Sold Individually) |
| 77774 | Drive Rod for Ammco |
| 7775 | Gear Support for Ammco |
| 7757-1 | Socket Head Cap Screw 10-24 x 5/16 (Not Sold Individually) (2X) |
| 7757-2 | Spring Pin 1/8 x 5/8 (Not Sold Individually) |
| 7757-3 | Flat Washer 3/8 x .03/Thick (Not Sold Individually) |
| 7757-4 | Socket Head Cap Screw 10/24 x 5/8 (Not Sold Individually) |
| 7757-5 | Flat Washer 3/8 x .06 Thick (Not Sold Individually) |
| 7757-6 | Dowel Pin 3mm x 6mm (Not Sold Individually) (2X) |
| 7757-7 | Spacer OD x 1/8 Length for 10 Screw (Not Sold Individually) |
Fits the following brake lathe brands:
Ammco – 2002,3000,4000,4100,7000,7500,7700
Interchangeable Part Numbers:
Ammco 940718
MT-RSR Insights:
If you find that your trap assembly is worn out, this is a quality replacement. Please note that the coupling on the end is the new version and is one piece that does not swivel.
Need help of finding a part for your Ammco? Click here for the parts list!
Made in the USA
