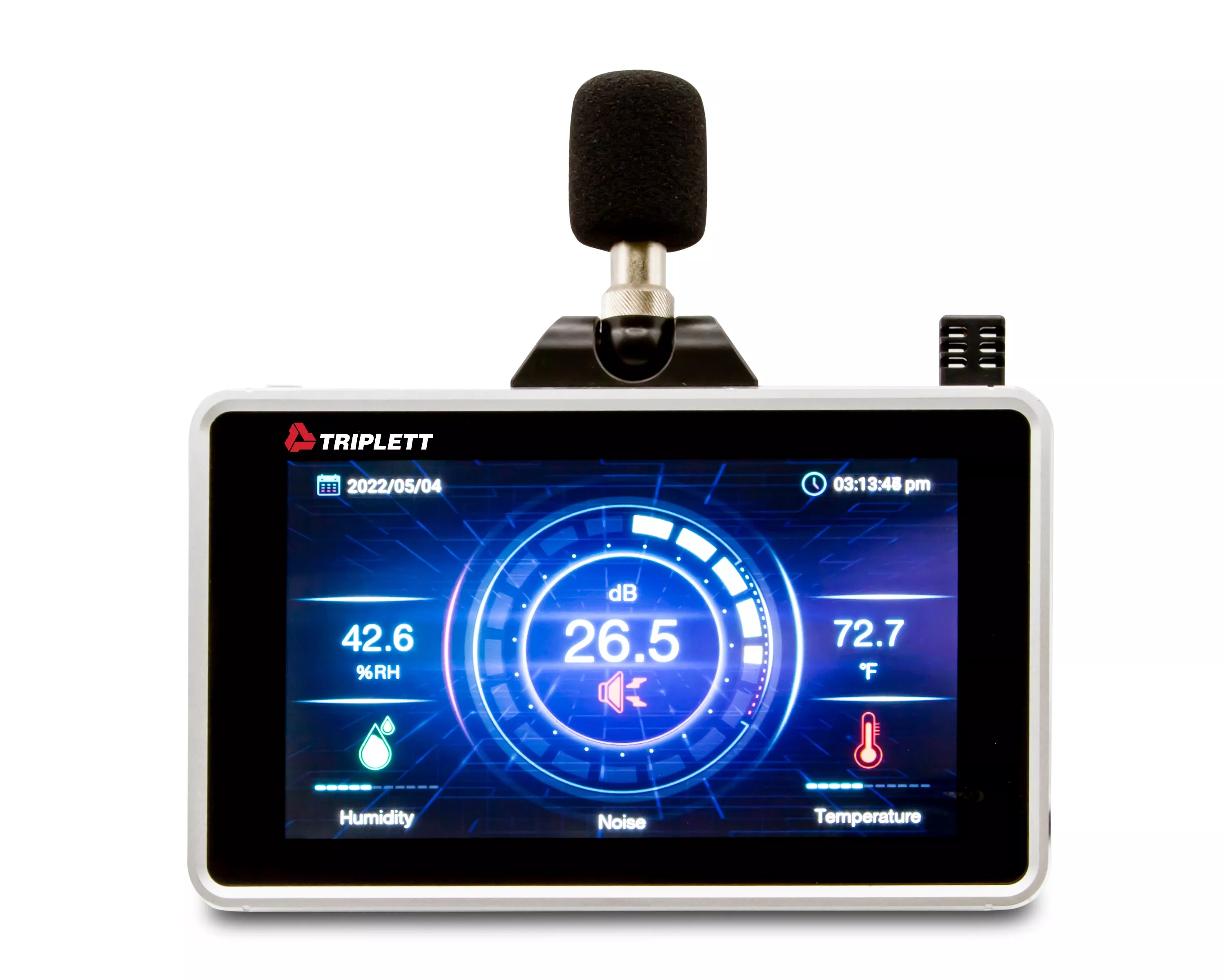

The Triplett EMDL700 Temperature/Humidity/Sound Datalogger records up to 20,000 data points. The 7″ high-resolution touch screen color LCD display (1024×600) displays a real time graphical curve with zoom and digital display of readings and has a brightness adjustment and screen saver with adjustable start time. Read More>
DESCRIPTION
The Triplett EMDL700 Temperature/Humidity/Sound Datalogger records up to 20,000 data points. The 7″ high-resolution touch screen color LCD display (1024×600) displays a real time graphical curve with zoom and digital display of readings and has a brightness adjustment and screen saver with adjustable start time. It features High/Low audible and visual alarms (high alarm only for sound), 1 second to 24 hour sampling rate with manual start/stop, and a progress bar that indicates used/free memory. Sound measurement has a 1.4dB accuracy (IEC61672 -1 Class 2). Additional features include: User selectable C/F, Max/Min for recording the highest and lowest readings, date and time setting, USB interface for downloading recorded data to your PC in CSV format, and a built-in desk stand and wall mounting bracket. Comes complete with sensor probe with 3.3ft (1m) cable, windscreen, USB cable, 3.7V Lithium battery, and universal AC adapter/charger. 1 year warranty.
CATEGORY: AIR FLOW METER ANEMOMETERS, DIGITAL LIGHT METERS, HUMIDITY METERS
Features
- Records up to 20,000 data points
- 7″ high-resolution touch screen color LCD display (1024×600)
- Real time graphical curve with zoom and digital display of readings
- Brightness adjustment and screen saver with adjustable start time
- High/Low audible and visual alarms (high alarm only for sound)
- 1 second to 24 hour sampling rate with manual start/stop
- Progress bar indicates used/free memory
- USB interface for downloading recorded data to your PC in CSV format
- Built-in desk stand and wall mounting bracket
- Tripod mount
- Includes sensor probe with 3.3ft (1m) cable, windscreen, USB cable, 3.7V Lithium battery, and universal AC adapter/charger
Specifications
| EMDL700 | |
| Temperature | -4 to 176F (-20 to 80C) |
| Accuracy | 0.9F/0.5C at 14 to 176F (-10 to 80C) |
| Relative Humidity | 10 to 95%RH |
| Accuracy | 2.5%RH at 20 to 80%RH |
| Sound Level | 30 to 130dB |
| Accuracy | 1.4dB (1kHz) |
| Frequency Range | 31.5Hz to 8kHz |
| Frequency Weighting | A and C |
| Response Time | Fast (125ms) and Slow (1s) |
| Resolution | 0.1F/C; 0.1%RH/0.1dB |
| Memory | 16GB |
| Datalogging Points | 20,000 points total |
| Sampling Intervals | 1sec to 24hr |
| PC Interface | USB |
| Power | 3.7V Lithium Battery/5V 2A AC Adapter |
| Dimensions | 7.1 x 4.5 x 0.7″ (180 x 115 x 18mm) |
| Weight | 1lbs (450g) |
