SKU: HT-031014 | UPC: 9356450002899

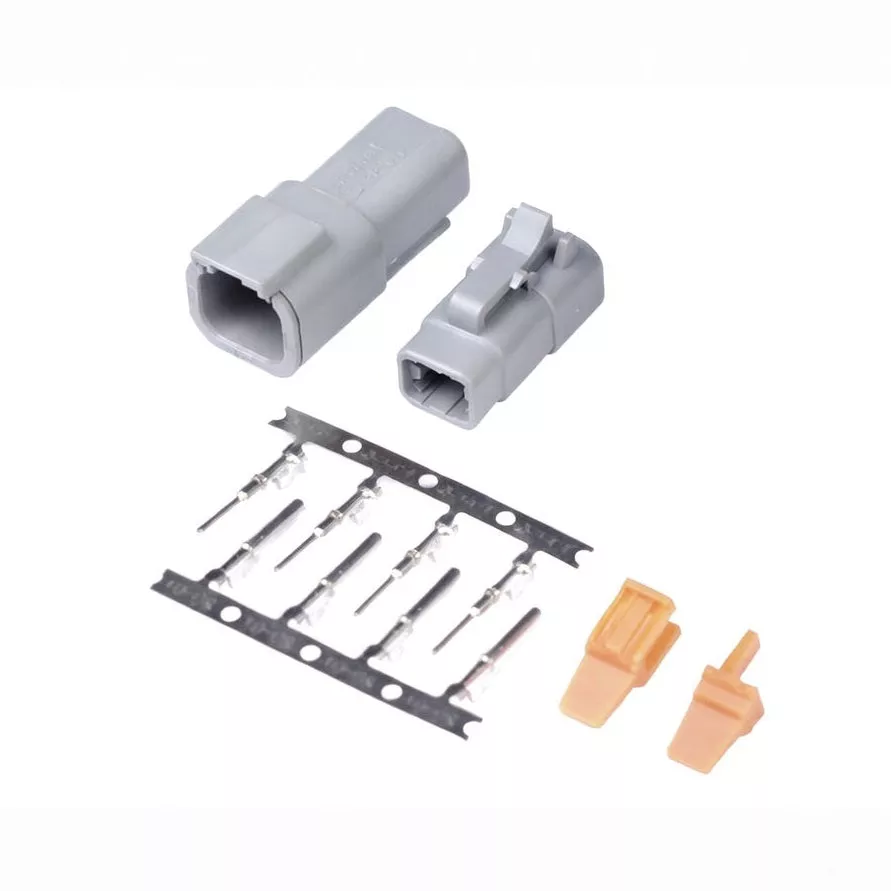

Haltech Matching Set of Deutsch DTM-4 Connectors 7.5 Amp Plug & Pins
Haltech Matching Set of Deutsch DTM-4 Connectors delivers reliable 4-position plugs rated at 7.5 amps for automotive wiring harnesses in high-performance applications. These connectors create sealed connections resistant to water, dust, and vibration, perfect for engine sensors, injectors, and ECU wiring. Build durable custom harnesses that withstand motorsport demands.
Key Features
- Deutsch DTM-4 Housings: Compact grey thermoplastic male and female 4-way housings with mechanical latching for secure mating up to 250 cycles.
- 7.5 Amp Rating: Size 20 contacts handle 7.5A continuous per pin at 250V, ideal for low to medium current circuits like coils and gauges.
- Gold-Plated Pins: Includes 10 male and 10 female terminals for corrosion resistance and low-resistance connections in harsh environments.
- IP68 Sealing: Integrated wire seals and interface seals protect against dust, water immersion, operating from -55C to 125C.
- Complete Kit: Supplied with TPA locks for terminal retention and cavity plugs for unused positions, ready for immediate assembly.
Product Notes
- Compatible with 20-24 AWG wire gauges for most automotive sensor and power circuits.
- Crimp terminals using Deutsch-compatible tools like HT-010140 for factory-spec terminations.
- Store in dry conditions to maintain seal integrity before installation.
Installation Notes
- Professional installation recommended.
- Use calibrated crimping tool to achieve proper pin retention force.
- Align TPA locks after inserting all terminals to lock in place.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Custom Wiring Harnesses |
Why Choose Haltech?
- Proven in global motorsport with Elite ECU systems and harnesses.
- Motorsport-grade components built for reliability under extreme stress.
- Precision-engineered for seamless integration in custom builds.
Frequently Asked Questions
- Q: What wire sizes fit these connectors?
A: Designed for 20-24 AWG wire, covering standard automotive signal and power wires for injectors, sensors, and relays. - Q: Are these connectors waterproof?
A: Yes, achieve IP68 rating with proper seals and mating, resisting submersion and high-pressure washdown. - Q: What tools are needed for installation?
A: Deutsch hand crimper HT-010140 or equivalent, plus removal tool for pins during assembly or rework.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock – ships same or next business day
- Packaging: Protective plastic tray in 6 x 4 x 1 inch box
- Weight: 0.10 lbs (0.05 kg)
