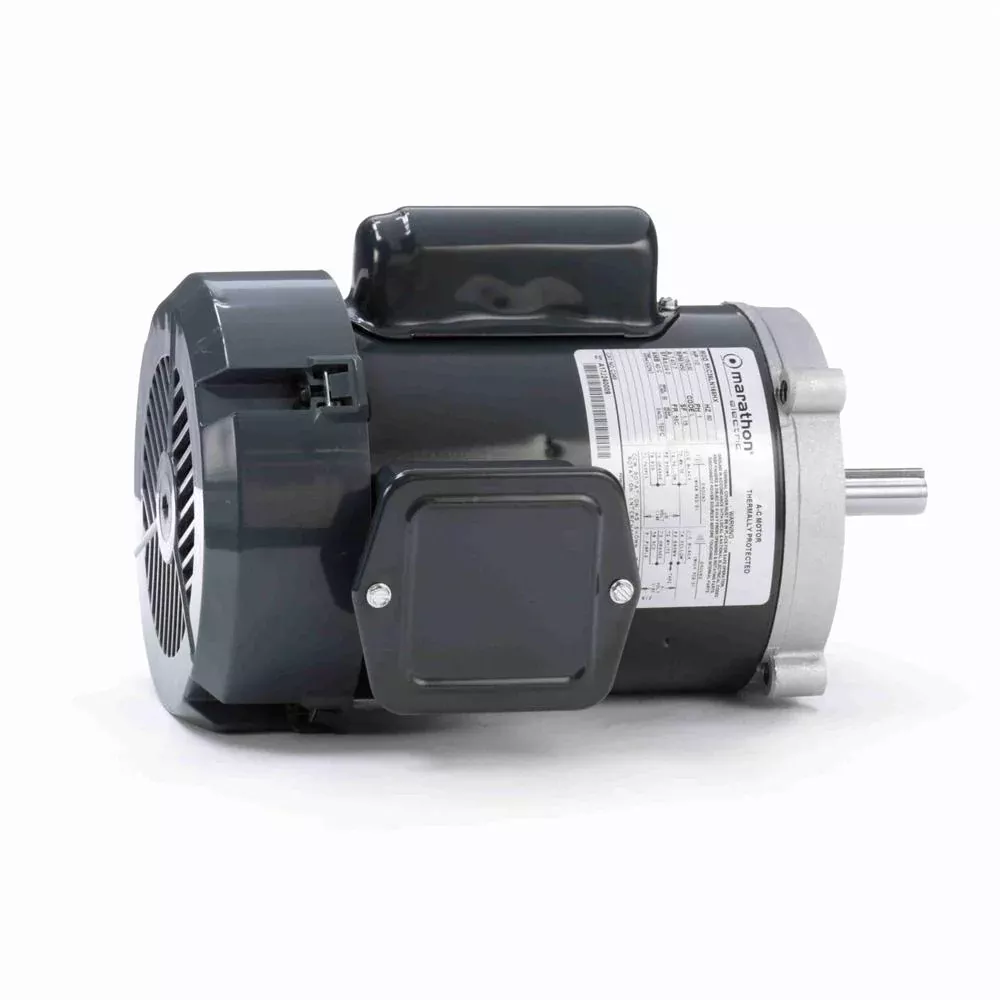

Marathon C349General Purpose Motor – C349

Original price was: $352.21.Current price is: $250.61.

Sale!
SKU: C349 Category:
Share
  • Amps: 7.4/3.7
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.68
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 56C
  • HP: 1/2
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 5KC36LN166X
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 6.22″
  • Mounting Orientation: Any
  • Mounting: Face
  • Number of Speeds: 1
  • Overall Length: 11.36″
  • Phase: 1
  • Product Type: Capacitor Start
  • Rotation: Reversible
  • RPM: 3450
  • Service Factor: 1.15
  • Shaft Diameter: 5/8″
  • Shaft Length: 1.88″
  • Thermal Protection: Automatic
  • Volts: 115
  • Volts: 230
  • Ship Weight: 19 lbs.
