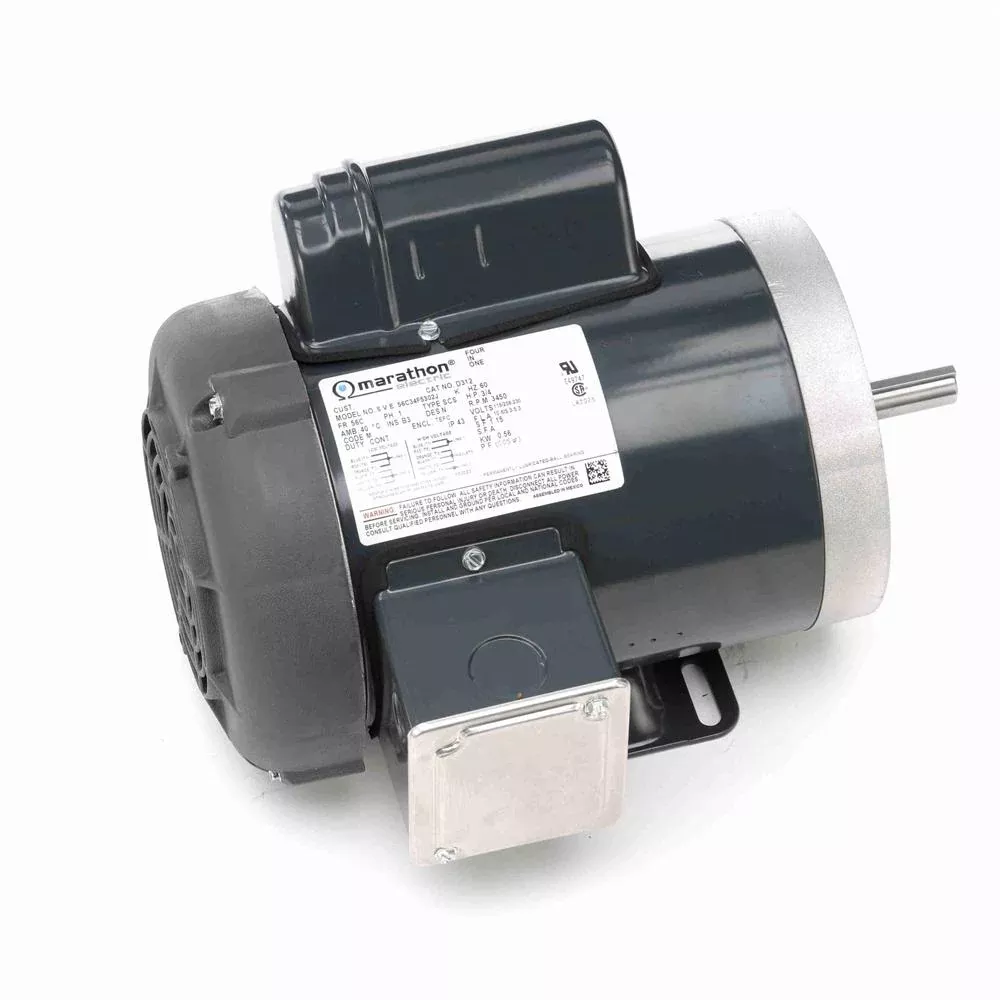

Marathon D312General Purpose Motor – D312

Original price was: $292.66.Current price is: $172.78.

Sale!
SKU: D312 Category:
Share
  • Amps: 10.6/5.3-5.3
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.66
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 56C
  • HP: 3/4
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 056C34F5302
  • Maximum Ambient Temperature: 40° C
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 12.31″
  • Phase: 1
  • Product Type: Capacitor Start
  • Rotation: Reversible
  • RPM: 3450
  • Service Factor: 1.15
  • Shaft Diameter: 5/8″
  • Shaft Length: 1.88″
  • Volts: 115
  • Volts: 208
  • Volts: 230
  • Ship Weight: 28 lbs.
