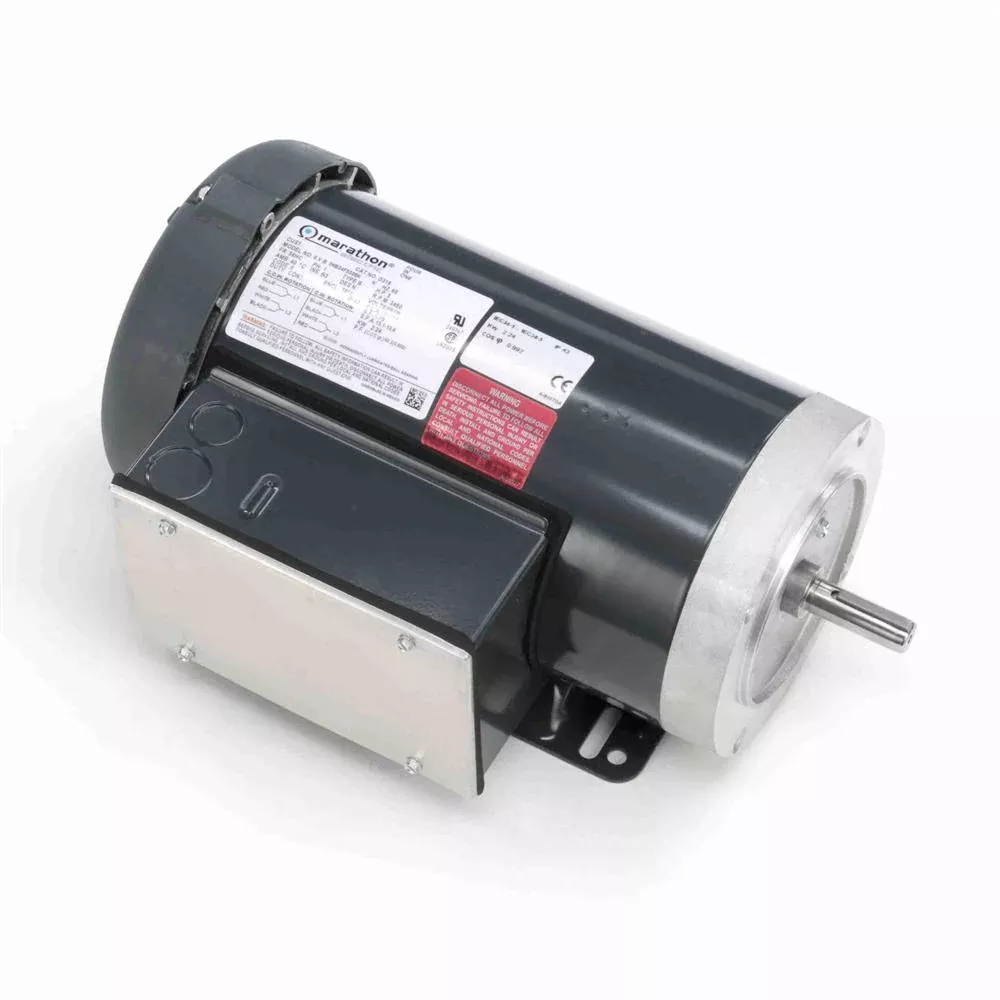

Marathon D316General Purpose Motor – D316

Original price was: $540.16.Current price is: $398.32.

Sale!
SKU: D316 Category:
Share
  • Amps: 13.1-11.8
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.84
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 56HC
  • HP: 3
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 056B34F5328
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 9.56″
  • Mounting Orientation: Horizontal
  • Mounting: Face/Base
  • Number of Speeds: 1
  • Overall Length: 14.81″
  • Phase: 1
  • Product Type: Capacitor Start/Capacitor Run
  • Rotation: Reversible
  • RPM: 3450
  • Service Factor: 1.15
  • Shaft Diameter: 5/8″
  • Shaft Length: 2.06″
  • Volts: 208
  • Volts: 230
  • Ship Weight: 51 lbs.
