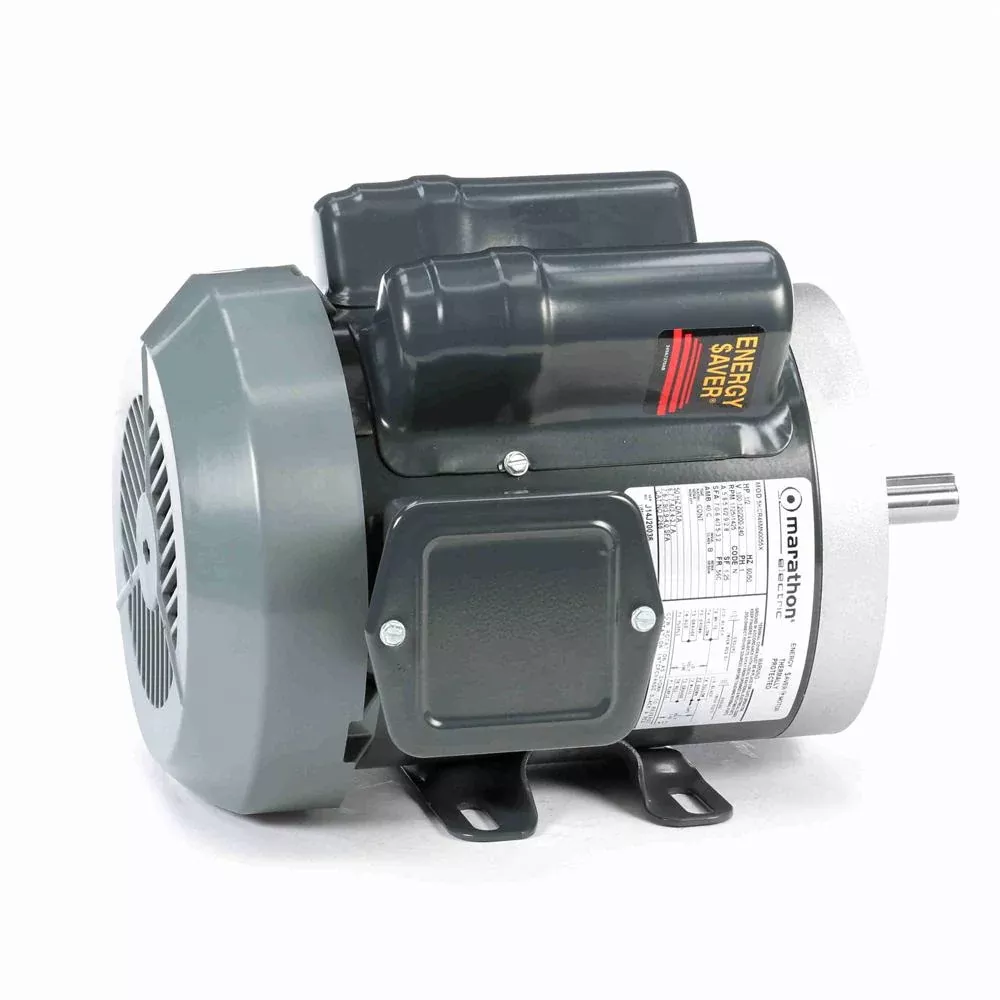

Marathon E266General Purpose Motor – E266

Original price was: $391.95.Current price is: $294.88.

Sale!
SKU: E266 Category:
Share
  • Amps: 5.8-5.6/2.9-2.8
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.74
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 56C
  • HP: 1/2
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 5KCR46MN0055X
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 6.55″
  • Mounting Orientation: Any
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 11.84″
  • Phase: 1
  • Product Type: Capacitor Start/Capacitor Run
  • Rotation: Reversible
  • RPM: 1725
  • Service Factor: 1.25
  • Shaft Diameter: 5/8″
  • Shaft Length: 1.88″
  • Thermal Protection: Automatic
  • Volts: 100
  • Volts: 120
  • Volts: 200
  • Volts: 240
  • Ship Weight: 29 lbs.
