Home » Shop » hot sale » Marathon EG283General Purpose Motor – EG283

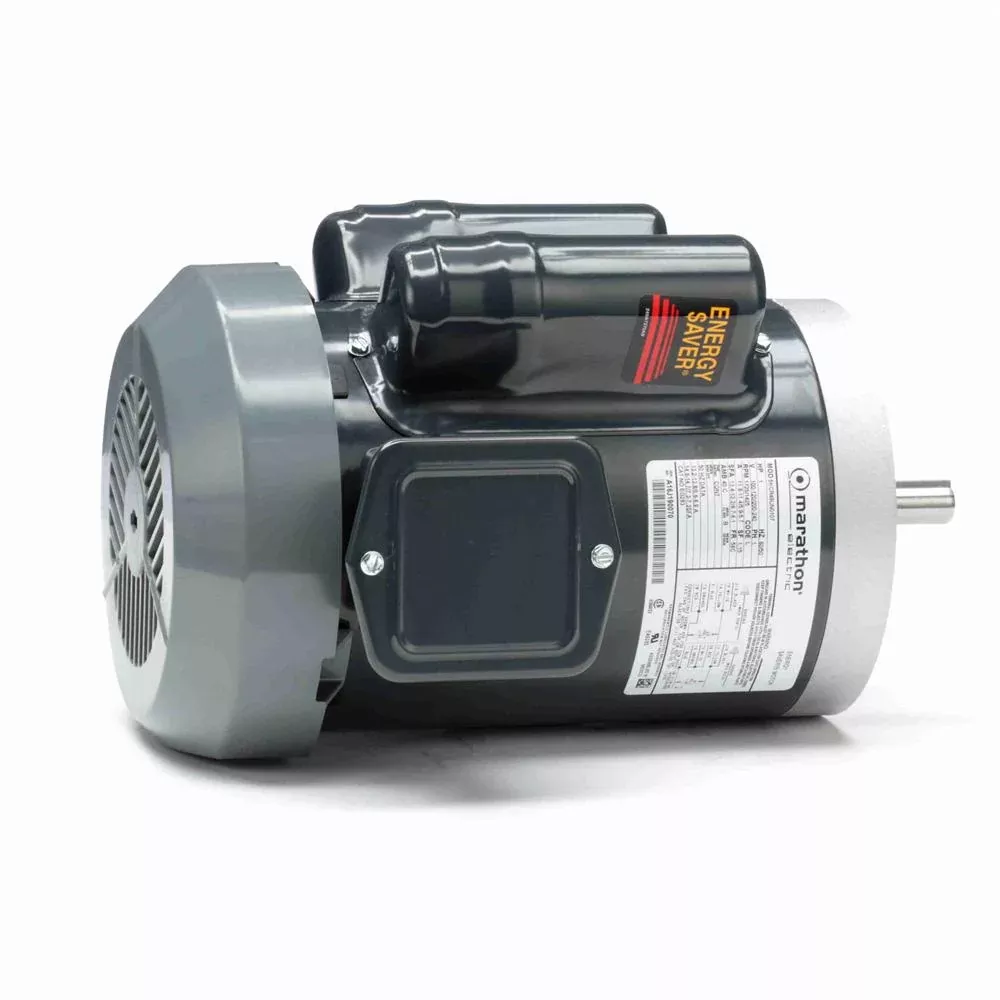

Marathon EG283General Purpose Motor – EG283

Original price was: $332.77.Current price is: $182.63.

Sale!
SKU: EG283 Category:
Share
  • Amps: 11.8-11.4/5.9-5.7
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.774
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 56C
  • HP: 1
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 5KCR49UN0107
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 7.68″
  • Mounting Orientation: Any
  • Mounting: Face
  • Number of Speeds: 1
  • Overall Length: 12.97″
  • Phase: 1
  • Product Type: Capacitor Start/Capacitor Run
  • Rotation: Reversible
  • RPM: 1725
  • Service Factor: 1.15
  • Shaft Diameter: 5/8″
  • Shaft Length: 1.88″
  • Volts: 100
  • Volts: 120
  • Volts: 200
  • Volts: 240
  • Ship Weight: 40 lbs.
