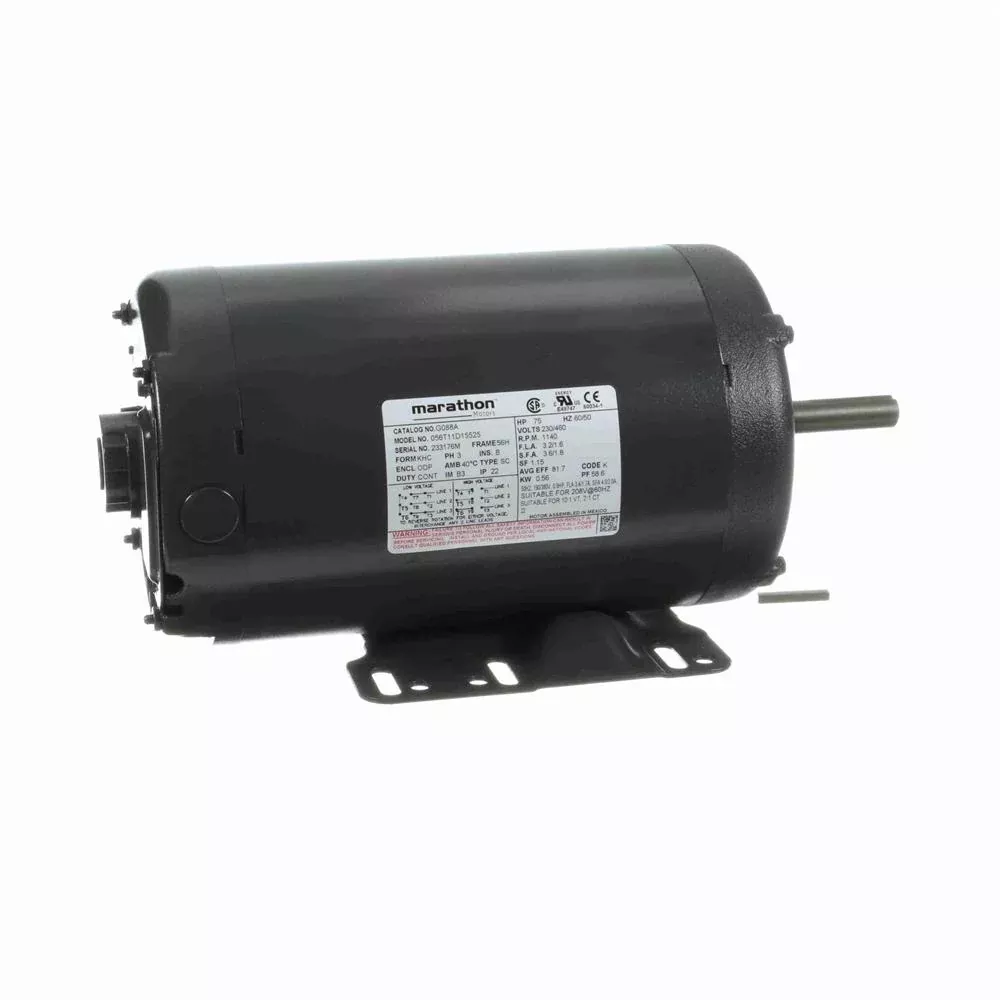

Marathon G088A6-1/2″ Diameter General Purpose Motor – G088A

Original price was: $352.55.Current price is: $232.89.

Sale!
SKU: G088A Category:
Share
  • Amps: 3.2/1.6
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.817
  • Enclosure Material: Steel
  • Enclosure Type: ODP (Open Dripproof)
  • Frame: 56
  • HP: 3/4
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 056T11D15525
  • Maximum Ambient Temperature: 40° C
  • Motor Diameter: 6-1/2″
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 14.43″
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 1140
  • Service Factor: 1.15
  • Shaft Diameter: 5/8″
  • Shaft Length: 1.88″
  • Volts: 230
  • Volts: 460
  • Ship Weight: 43 lbs.
