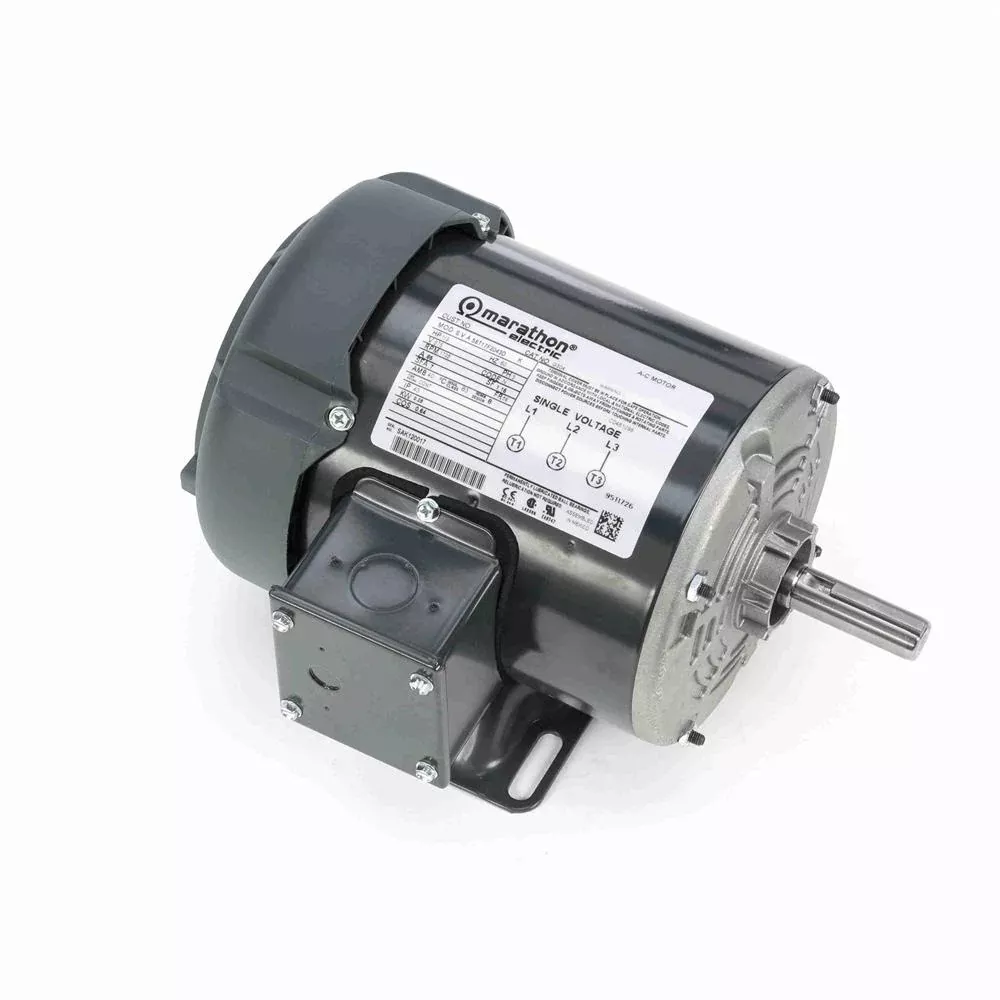

Marathon G3046-1/2″ Diameter General Purpose Motor – G304

Original price was: $268.20.Current price is: $169.39.

Sale!
SKU: G304 Category:
Share
  • Amps: 0.65
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.69
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 56
  • HP: 1/3
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 056T17F2043
  • Maximum Ambient Temperature: 40° C
  • Motor Diameter: 6-1/2″
  • Motor Shell Length: 5.25″
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 10.22″
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 1725
  • Service Factor: 1.15
  • Shaft Diameter: 5/8″
  • Shaft Length: 1.97″
  • Volts: 575
  • Ship Weight: 25 lbs.
