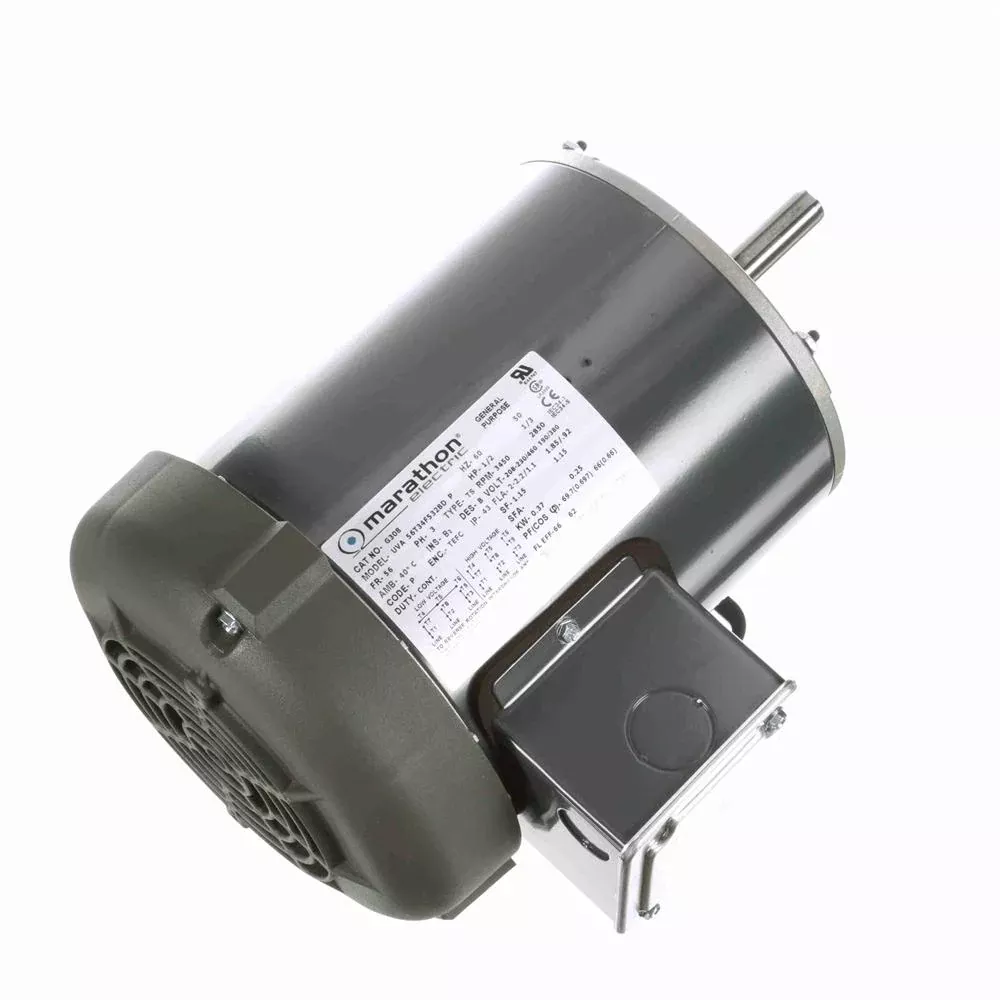

Marathon G3086-1/2″ Diameter General Purpose Motor – G308

Original price was: $225.06.Current price is: $140.55.

Sale!
SKU: G308 Category:
Share
  • Amps: 2-2.2/1.1
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.66
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 56
  • HP: 1/2
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 056T34F5328
  • Maximum Ambient Temperature: 40° C
  • Motor Diameter: 6-1/2″
  • Motor Shell Length: 6.56″
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 11.82″
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 3450
  • Service Factor: 1.15
  • Shaft Diameter: 5/8″
  • Shaft Length: 2.32″
  • Volts: 208
  • Volts: 230
  • Volts: 460
  • Ship Weight: 22 lbs.
