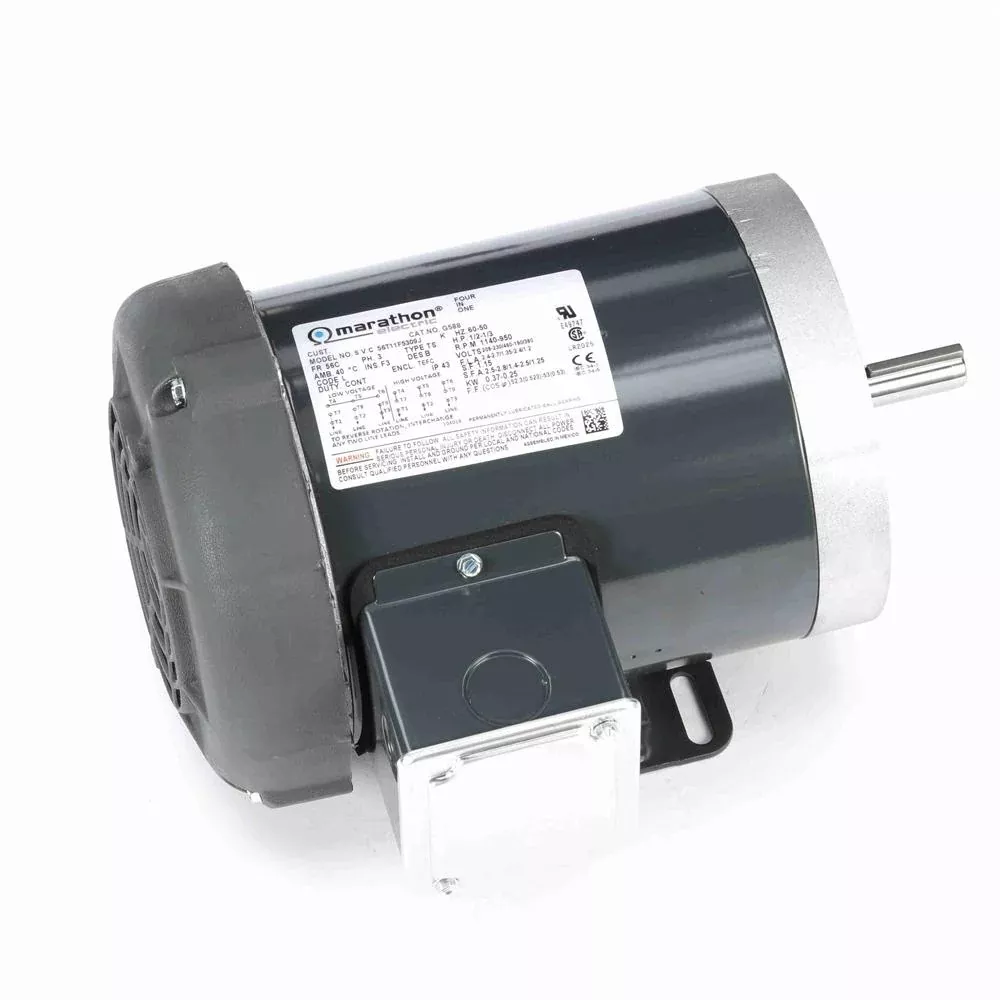

Marathon G588General Purpose Motor – G588

Original price was: $326.46.Current price is: $195.48.

Sale!
SKU: G588 Category:
Share
  • Amps: 2.4-2.7/1.35
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.68
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 56C
  • HP: 1/2
  • Hz: 60
  • Insulation Class: F
  • Manufacturer Model : 056T11F5309
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 6.56″
  • Mounting Orientation: Horizontal/Vertical
  • Mounting: Face/Base
  • Number of Speeds: 1
  • Overall Length: 11.81″
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 1140
  • Service Factor: 1.15
  • Shaft Diameter: 5/8″
  • Shaft Length: 2.06″
  • Volts: 208
  • Volts: 230
  • Volts: 460
  • Ship Weight: 23 lbs.
