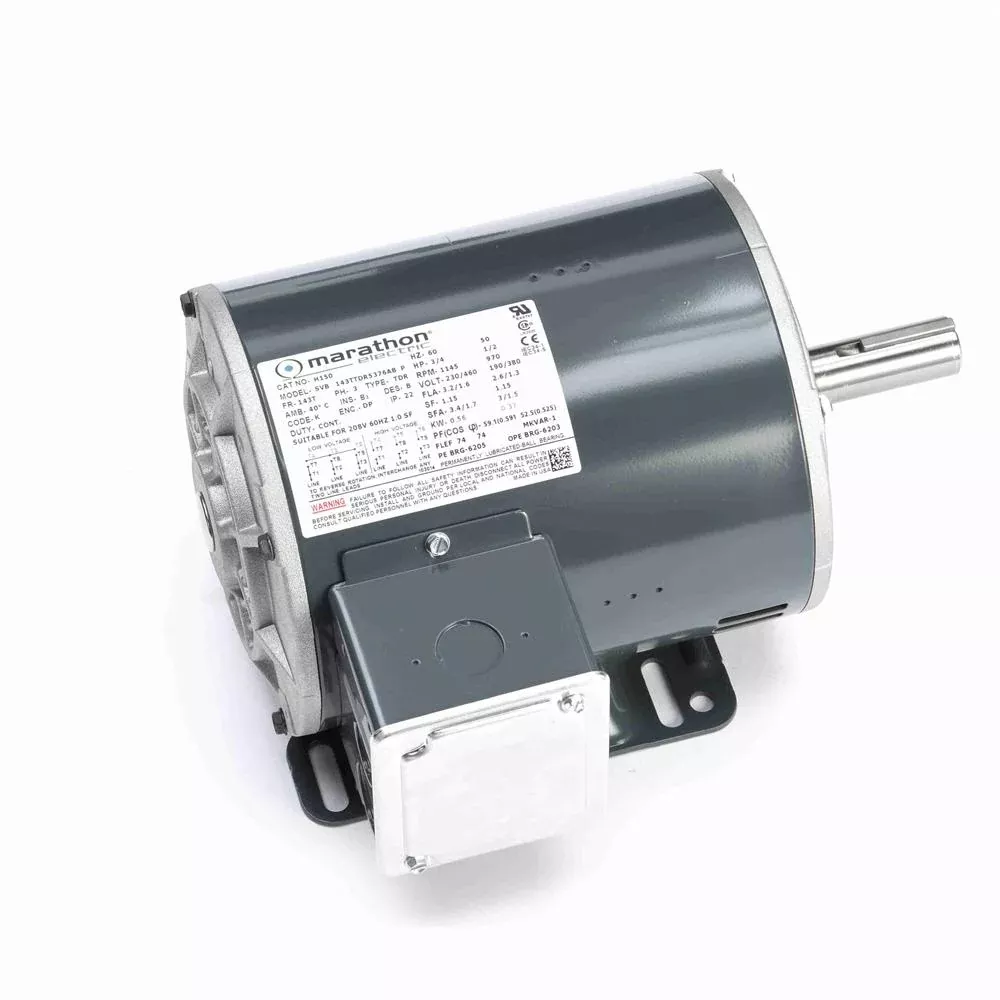

Marathon H150General Purpose Motor – H150

Original price was: $114.04.Current price is: $57.34.

Sale!
SKU: H150 Category:
Share
  • Amps: 3.2/1.6
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.74
  • Enclosure Material: Steel
  • Enclosure Type: ODP (Open Dripproof)
  • Frame: 143T
  • HP: 3/4
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 143TTDR5376
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 7.06″
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 10.99″
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 1145
  • Service Factor: 1.15
  • Shaft Diameter: 7/8″
  • Shaft Length: 2.28″
  • Volts: 230
  • Volts: 460
  • Ship Weight: 29 lbs.
