Home » Shop » hot sale » Marathon H457General Purpose Motor – H457

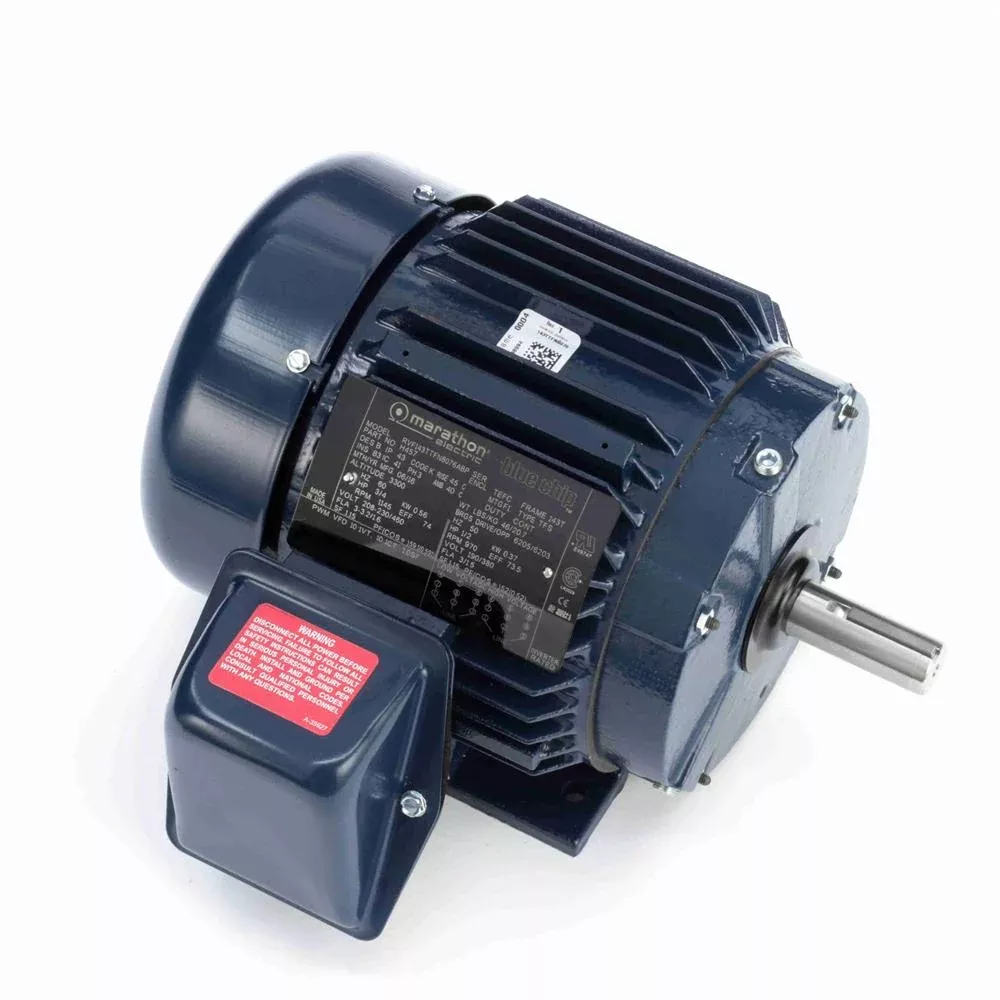

Marathon H457General Purpose Motor – H457

Original price was: $372.81.Current price is: $292.90.

Sale!
SKU: H457 Category:
Share
  • Amps: 3-3.2/1.6
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.74
  • Enclosure Material: Iron
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 143T
  • HP: 3/4
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 143TTFN8076
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 5.25″
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 12.04″
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 1145
  • Service Factor: 1.15
  • Shaft Diameter: 7/8″
  • Shaft Length: 2.56″
  • Volts: 208
  • Volts: 230
  • Volts: 460
  • Ship Weight: 46 lbs.
