Home » Shop » hot sale » Marathon I201General Purpose Motor – I201

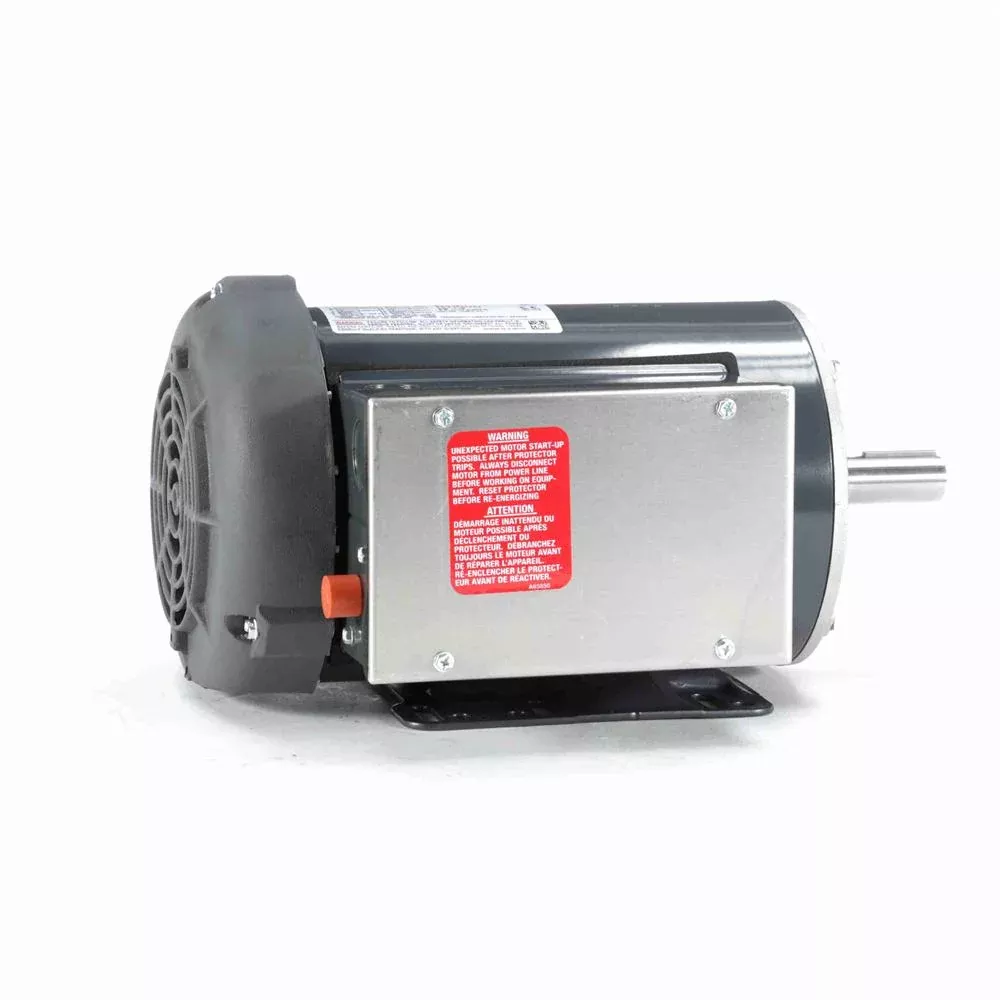

Marathon I201General Purpose Motor – I201

Original price was: $394.06.Current price is: $201.80.

Sale!
SKU: I201 Category:
Share
  • Amps: 15.2/8.2-7.6
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.8
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 145T
  • HP: 1-1/2
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 145TBFR5327
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 8.56″
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 13.87″
  • Phase: 1
  • Product Type: Capacitor Start/Capacitor Run
  • Rotation: Reversible
  • RPM: 1740
  • Service Factor: 1.15
  • Shaft Diameter: 7/8″
  • Shaft Length: 2.28″
  • Thermal Protection: Manual
  • Volts: 115
  • Volts: 208
  • Volts: 230
  • Ship Weight: 41 lbs.
