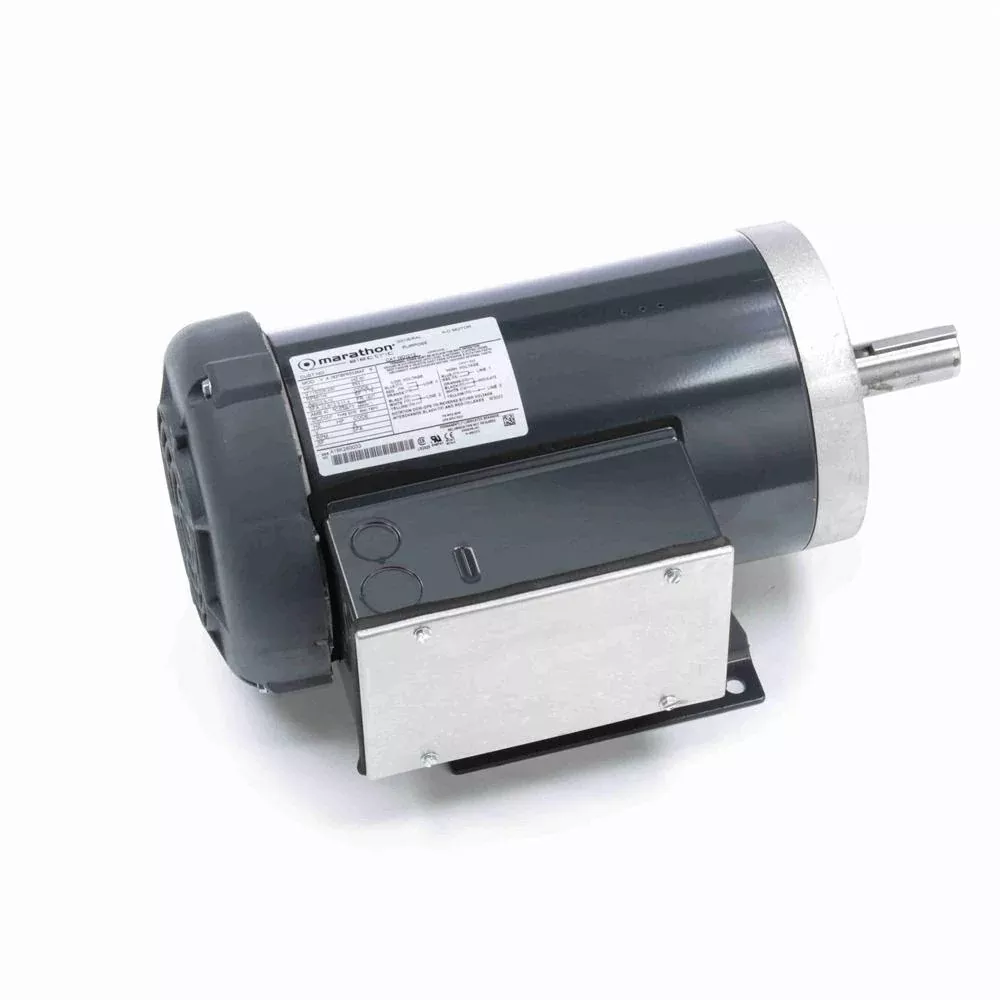

Marathon I212General Purpose Motor – I212

Original price was: $345.27.Current price is: $218.60.

Sale!
SKU: I212 Category:
Share
  • Amps: 20/10.8-10
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.8
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 182T
  • HP: 2
  • Hz: 60
  • Insulation Class: F
  • Manufacturer Model : 182TBFR5326
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 9.56″
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 15.65″
  • Phase: 1
  • Product Type: Capacitor Start/Capacitor Run
  • Rotation: Reversible
  • RPM: 1745
  • Service Factor: 1.15
  • Shaft Diameter: 1-1/8″
  • Shaft Length: 2.78″
  • Volts: 115
  • Volts: 208
  • Volts: 230
  • Ship Weight: 52 lbs.
