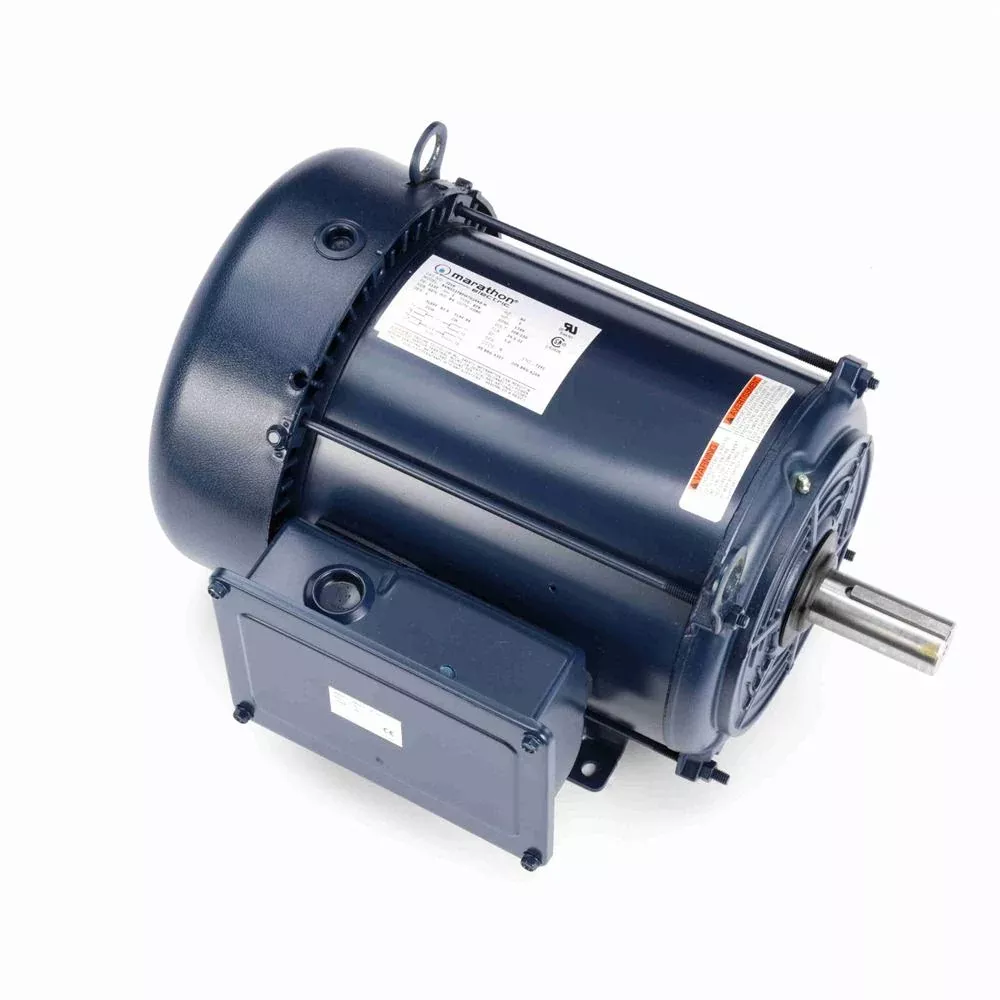

Marathon I216General Purpose Motor – I216

Original price was: $753.67.Current price is: $495.19.

Sale!
SKU: I216 Category:
Share
  • Amps: 24.5-22
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.825
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 213T
  • HP: 5
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 213TBFW7026
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 9.65″
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 18.73″
  • Phase: 1
  • Product Type: Capacitor Start/Capacitor Run
  • Rotation: Reversible
  • RPM: 1750
  • Service Factor: 1
  • Shaft Diameter: 1-3/8″
  • Shaft Length: 3.47″
  • Volts: 208
  • Volts: 230
  • Ship Weight: 106 lbs.
