Home » Shop » hot sale » Marathon K0696-1/2″ Diameter General Purpose Motor – K069

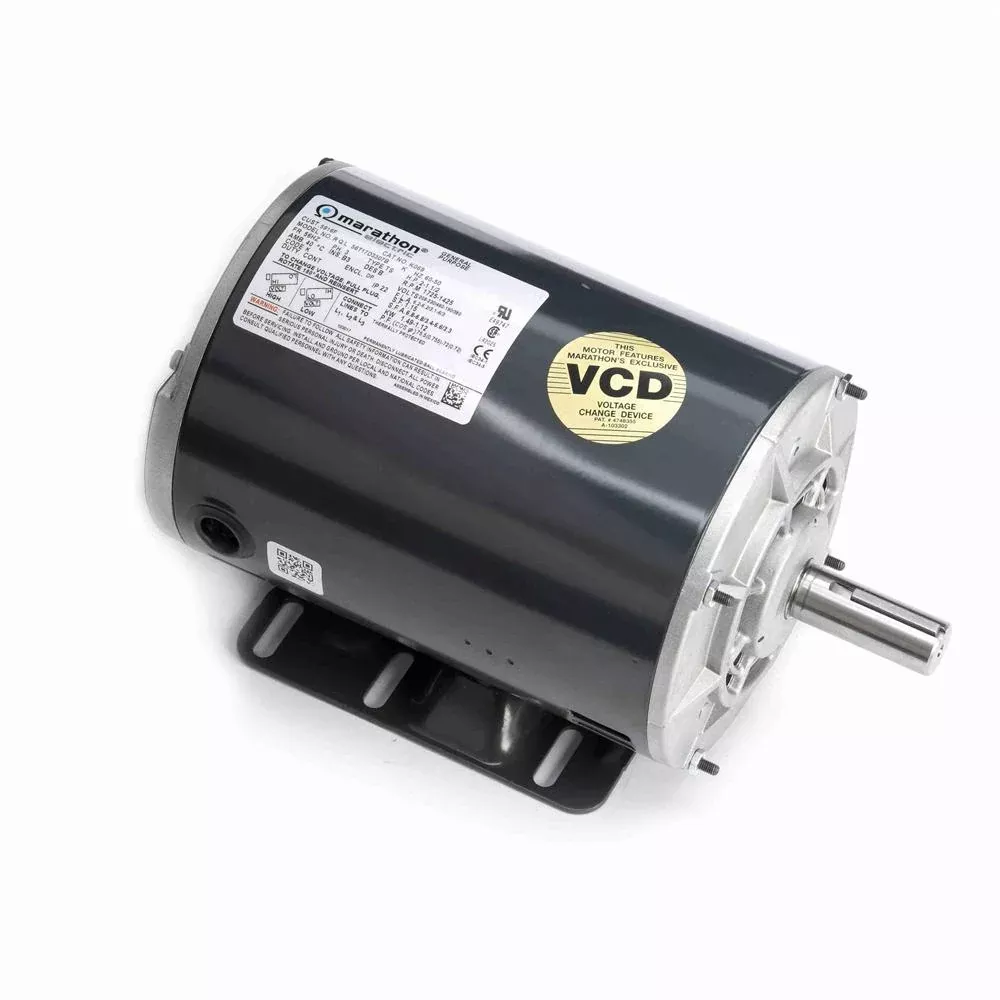

Marathon K0696-1/2″ Diameter General Purpose Motor – K069

Original price was: $363.58.Current price is: $202.10.

Sale!
SKU: K069 Category:
Share
  • Amps: 6.2-6.2/3.1
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.815
  • Enclosure Material: Steel
  • Enclosure Type: ODP (Open Dripproof)
  • Frame: 56HZ
  • HP: 2
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 056T17D3307
  • Maximum Ambient Temperature: 40° C
  • Motor Diameter: 6-1/2″
  • Motor Shell Length: 8.06″
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 11.99″
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 1725
  • Service Factor: 1.15
  • Shaft Diameter: 5/8″
  • Shaft Length: 2.28″
  • Thermal Protection: Automatic
  • Volts: 208
  • Volts: 230
  • Volts: 460
  • Ship Weight: 34 lbs.
