Home » Shop » hot sale » Marathon K523General Purpose Motor – K523

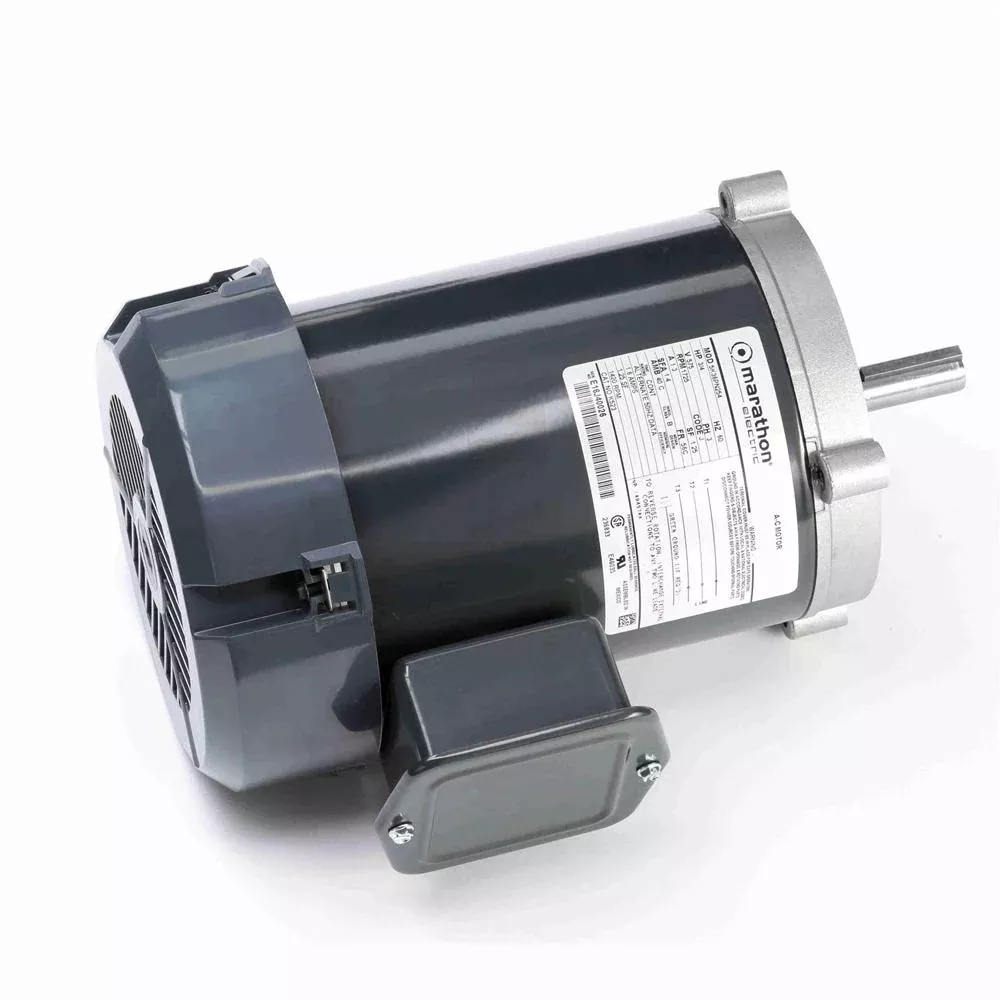

Marathon K523General Purpose Motor – K523

Original price was: $329.69.Current price is: $196.54.

Sale!
SKU: K523 Category:
Share
  • Amps: 1.3
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.734
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 56C
  • HP: 3/4
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 5K36PN254
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 6.22″
  • Mounting Orientation: Any
  • Mounting: Face
  • Number of Speeds: 1
  • Overall Length: 11.36″
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 1725
  • Service Factor: 1.25
  • Shaft Diameter: 5/8″
  • Shaft Length: 1.88″
  • Volts: 575
  • Ship Weight: 20 lbs.
