Home » Shop » hot sale » Marathon K703General Purpose Motor – K703

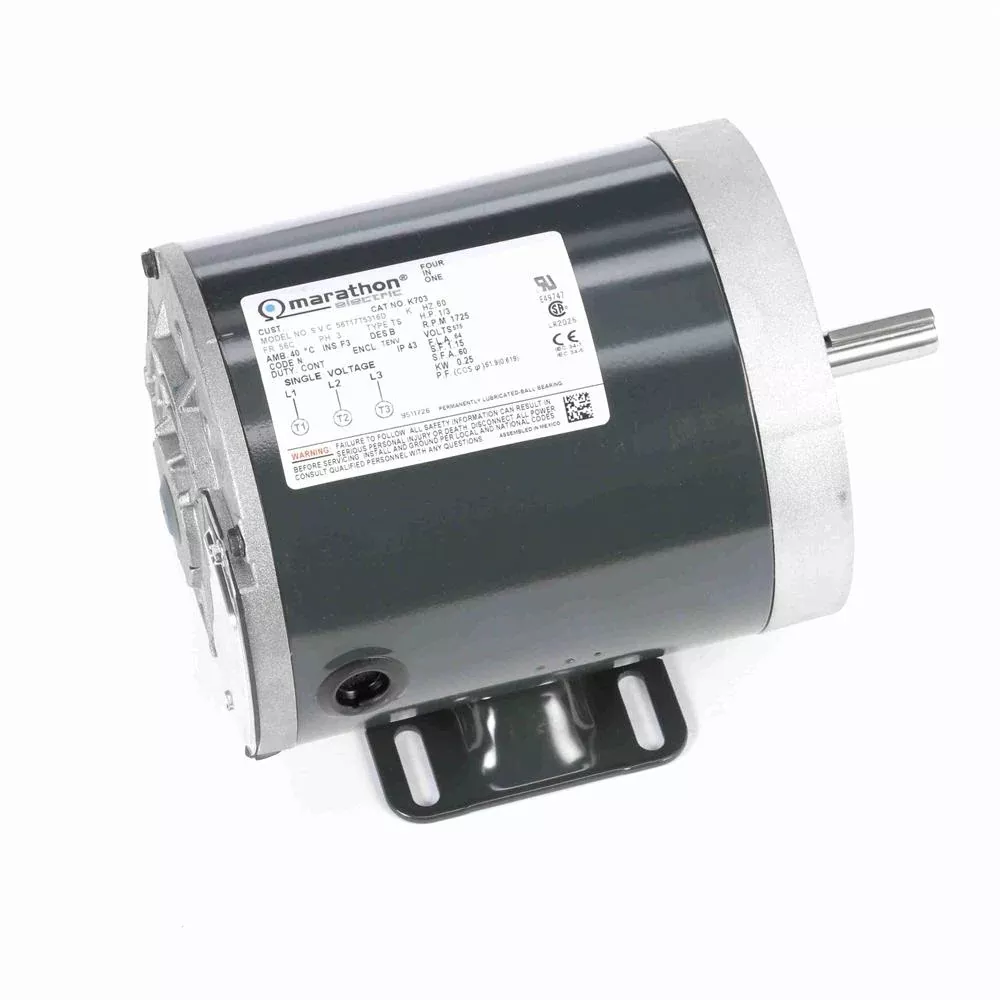

Marathon K703General Purpose Motor – K703

Original price was: $307.92.Current price is: $157.34.

Sale!
SKU: K703 Category:
Share
  • Amps: 0.64
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.68
  • Enclosure Material: Steel
  • Enclosure Type: TENV (Totally Enclosed Non Ventilated)
  • Frame: 56C
  • HP: 1/3
  • Hz: 60
  • Insulation Class: F
  • Manufacturer Model : 056T17T5316
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 6.06″
  • Mounting Orientation: Horizontal/Vertical
  • Mounting: Face/Base
  • Number of Speeds: 1
  • Overall Length: 9.93″
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 1725
  • Service Factor: 1.15
  • Shaft Diameter: 5/8″
  • Shaft Length: 2.06″
  • Volts: 575
  • Ship Weight: 20 lbs.
