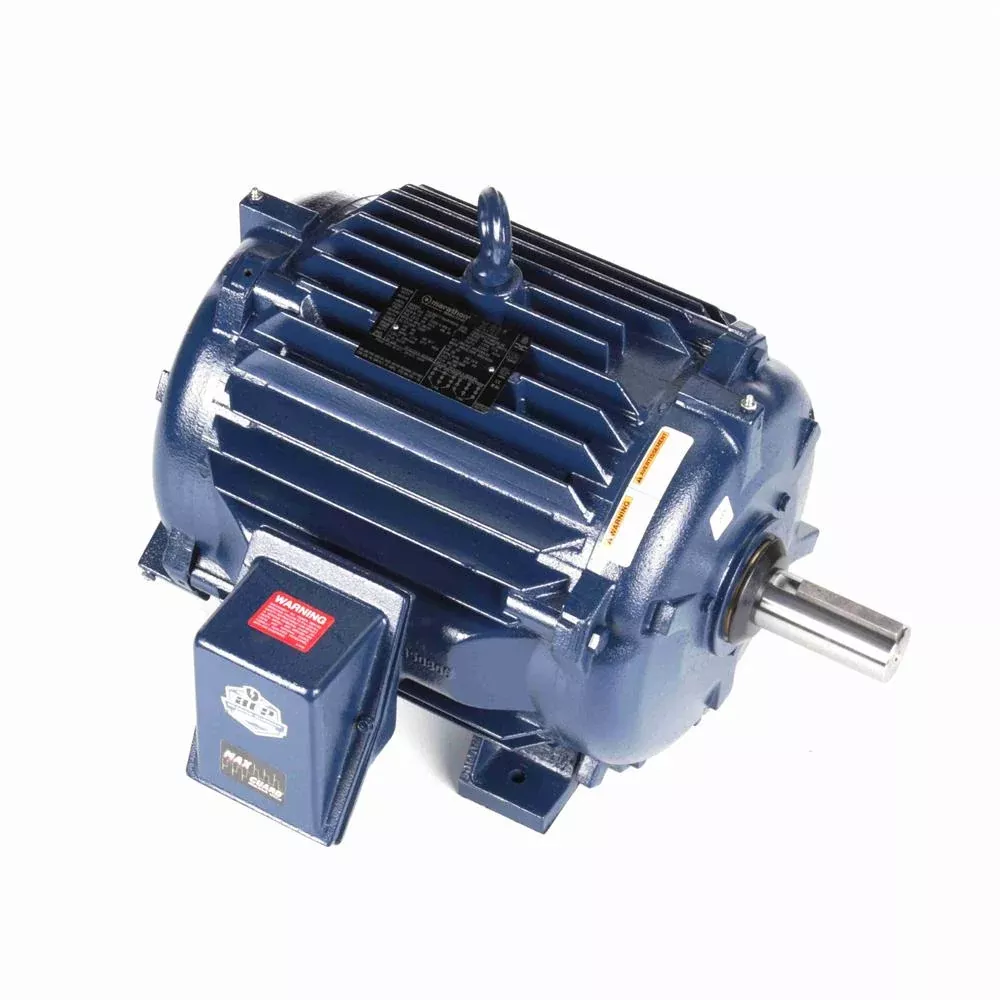

Marathon U1873General Purpose Motor – U1873

Original price was: $2,791.71.Current price is: $1,687.83.

Sale!
SKU: U1873 Category:
Share
  • Amps: 62/31
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.936
  • Enclosure Material: Iron
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Frame: 284TV
  • HP: 25
  • Hz: 60
  • Insulation Class: F
  • Manufacturer Model : 284TTTNA16540
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 12.75″
  • Mounting Orientation: Horizontal/Vertical
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 23.42″
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 1775
  • Service Factor: 1.15
  • Shaft Diameter: 1-7/8″
  • Shaft Length: 4.83″
  • Volts: 230
  • Volts: 460
  • Ship Weight: 443 lbs.
