Product Description

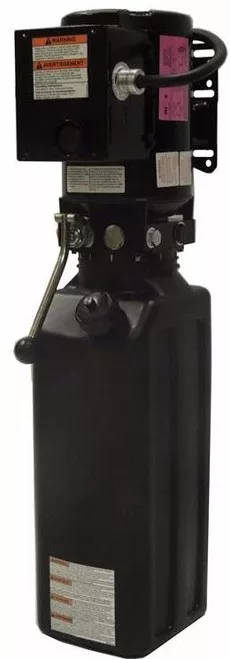

Auto Lift Power Unit. SPX AC-10AH.
Complete replacement hydraulic POWER UNIT for most lifts or hoists. ETL Certified. Includes hydraulic tank, pump, motor & switch. Stone (Fenner) brand. Assembled in the USA. This Power Unit does not have a “cable pull” overhead high-limit switch which is required on some 2-post lifts that have a cable type overhead limit. If you need a unit with a “cable pull” kill-switch order our AB-1270.
- Compatible with virtually every 2-post lift up to (and including) 11,000 lbs. capacity (and many 12k 2-post), and 4-post lifts up to (and including) 12,000 lbs. capacity. Also compatible with in-ground “cartridge” lifts.
- ETL Certified.
- 2.1 Gallons per Minute flow rate.
- 208-230 volt single phase. 60 hz.
- 2 hp 3450 rpm motor (3.5 hp motor torque equivalent).
- 4 gallon tank (15 liters).
- Compatible with standard hydraulic oil or Dexron II transmission fluid (not included).
- Cartridge type high pressure relief valve, 2755 psi.
- Fast flow rate matches lift speed of most OEM power units.
- Pump outlet (SAE 6 type, 9/16″-18 straight thread, 3/8″ pipe o-ring boss) can be on either side of unit. Older lifts with pipe thread connector require adapter; see below*.
- 3/8″ pipe thread port for lifts that have a “cylinder vent” return to tank.
- Universal mounting bracket.
- 1 year warranty.
- Made in the USA.
Can replace many of the following brands of power units: Fenner, SPX, Stone, MTE, Barnes, Global Hydraulics, Monarch, Haldex, Duro, and others.
*If you are replacing a Power Unit that had a pipe thread port (no o-ring) you need an adapter. The most common size (3/8″ pipe) is here.
Installation note: if lift is equipped with an ELECTRONIC overhead limit switch, wire that switch in SERIES with the motor start switch.
OEM / Aftermarket Interchanges:
- BH-7520-08, BH-7006A-19, BH-7006A-18, BH-7006A-17, BH-7006A-16, BH-7006A-15, BH-7006A-14, BH-7006A-13, BH-7006-01LS-19, BH-7006-01LS-18, BH-7006-01LS-17, BH-7006-01LS-16, BH-7006-01LS-15, BH-7006-01LS-14, BH-7006-01LS-13, BH-7006-19, BH-7006-18, BH-7006-17, BH-7006-16, BH-7006-15, BH-7006-14, BH-7006-13 .
- FA781
- P461, P502, P602, P650, P702, P709, P750, P1002, P1350, P1352, P1302, P3302, P3641 .
- AB-1468, AB-1437, AB1270, AB-1547, 17300001
- 992028
- 5585285
- 31368-19
WARNING: Replacing the hydraulic power unit DOES NOT INCREASE THE RATED CAPACITY OF THE LIFT! Never lift more than the rated capacity of any lift.
