SKU: TS-UNI-554

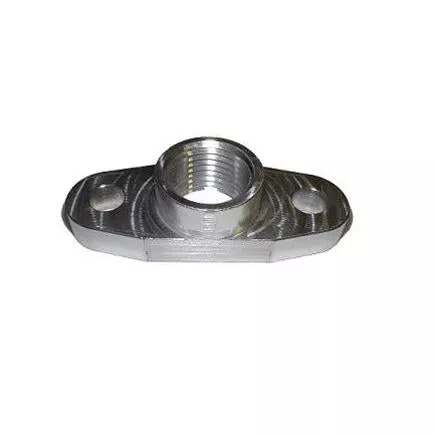

Torque Solution Oil Drain Flange -10AN for Garrett GT/GTX & BW EFR Turbos TS-UNI-554
This Torque Solution oil drain flange upgrades turbo oil drainage to a clean -10AN fitting for Garrett GT/GTX series and Borg Warner EFR turbos. It replaces stock barb fittings on compatible turbo housings allowing use of braided AN hose for reliable high-flow oil return in performance engines. Direct bolt-on design prevents leaks and simplifies plumbing in custom turbo setups.
Key Features
- Billet 6061-T6 Aluminum: CNC machined for strength and corrosion resistance in demanding oil environments
- Hard Black Anodized Finish: Provides long-lasting protection against wear and enhances underhood appearance
- -10AN Port: Accepts standard braided hose for superior flow and secure routing over stock barbs
- Direct Fit Design: Bolts onto Garrett GT/GTX and BW EFR turbo drain pads with no modifications
- Included Hardware: Comes with O-ring gasket and two M8x1.25 button head bolts for immediate installation
Product Notes
- Verify turbo housing drain pad matches Garrett GT/GTX or BW EFR specifications before purchase
- Use thread sealant on AN fitting during assembly to ensure airtight connection
- Packaged in protective bubble wrap inside small cardboard box for safe transit
Installation Notes
- Professional installation recommended.
- Remove stock drain flange and bolts then torque new bolts to 10-12 ft-lbs
- Compatible with existing turbo mounting hardware no additional adapters needed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Garrett | GT Series Turbos | GT2860R to GT3584R |
| Universal | Garrett | GTX Series Turbos | GTX2867R to GTX3584R |
| Universal | Borg Warner | EFR Series Turbos | EFR 6758 to EFR 9180 |
Why Choose Torque Solution?
- Proven track record in motorsports with parts used in drag racing and rally applications
- High-strength materials deliver consistent performance under extreme heat and pressure
- Precision CNC machining ensures perfect alignment and zero leaks on every unit
Frequently Asked Questions
- Q: Will this flange fit my Garrett GT3582R turbo?
A: Yes it directly replaces the stock drain flange on all Garrett GT and GTX series turbos with standard drain pads - Q: What material is the flange made from?
A: Constructed from 6061-T6 billet aluminum with hard black anodizing for durability and heat resistance - Q: What is the warranty on this part?
A: Backed by Torque Solution lifetime warranty against manufacturing defects when installed correctly
Shipping & Handling
- Method: USPS First Class or UPS Ground
- Availability: In stock – ships same or next business day
- Packaging: 5 x 4 x 1 inch box
- Weight: 0.2 lbs
