Overview

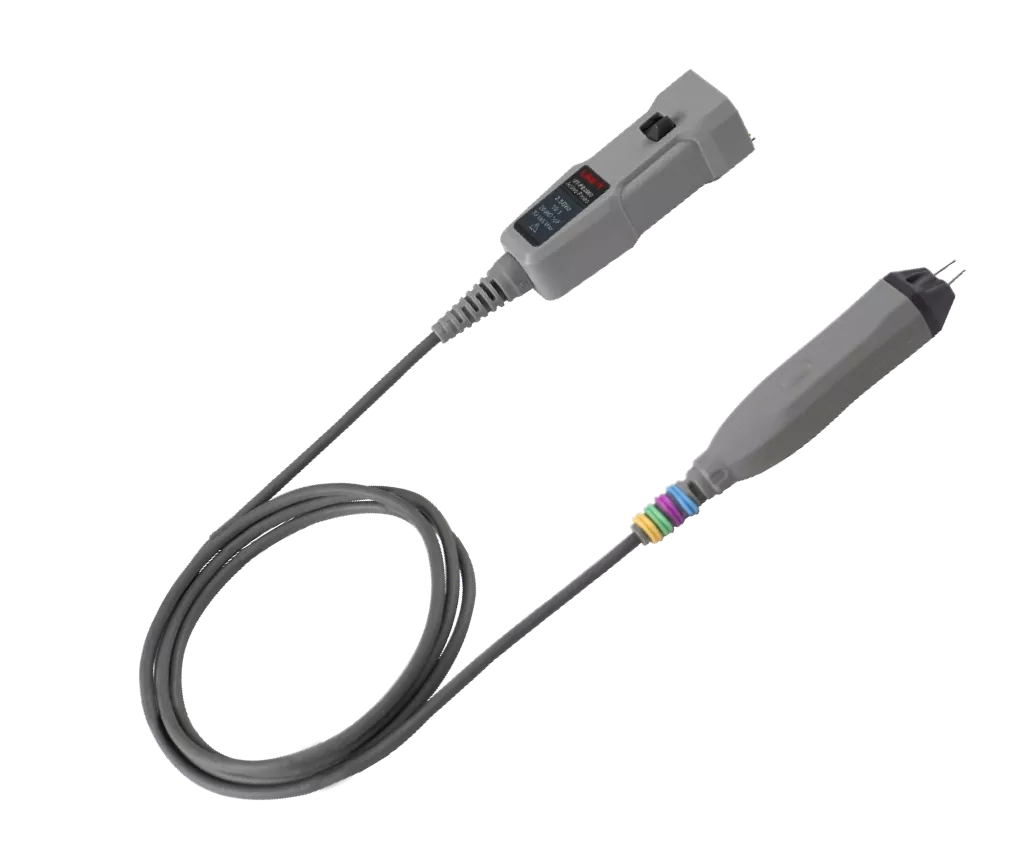

2.5 GHz active differential oscilloscope probe with 10:1 attenuation and 4V dynamic range. High-bandwidth differential measurement for power electronics, high-speed serial links, and switched-mode converter analysis. Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Key Features
- 2.5GHz Bandwidth Captures signal content up to 2.5GHz for accurate waveform measurement.
- 10:1 Attenuation Divides the input signal for measuring higher-voltage circuits.
- 4 V Maximum Input Voltage Rated input voltage for safe operation.
- Standard BNC Connection Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Specifications
| Bandwidth | 2.5 GHz |
| Probe Attenuation | 10:1 |
| Probe Max Voltage | 4 V |
