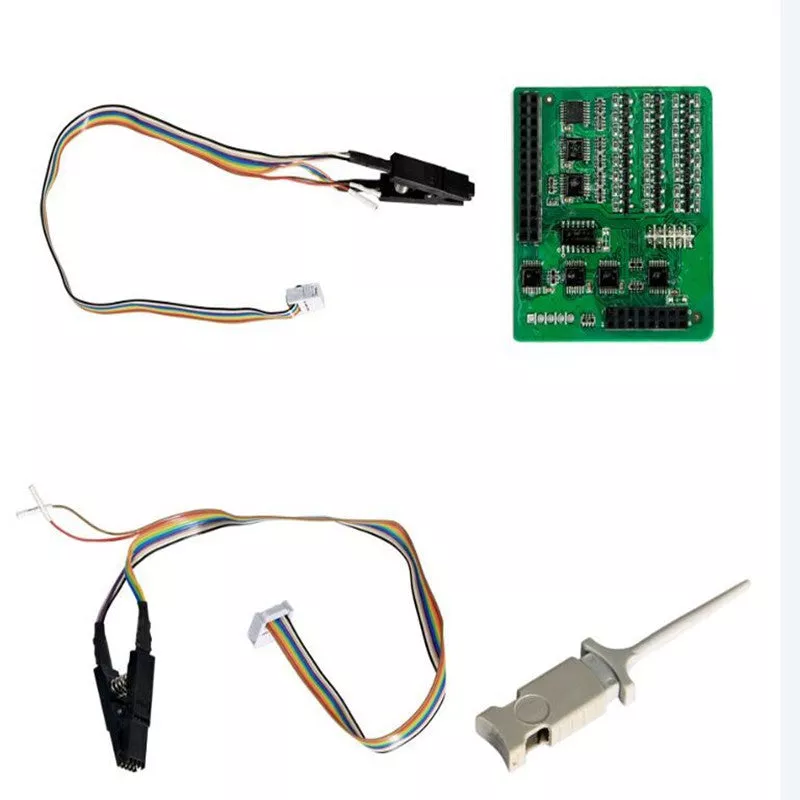

Xhorse EEPROM Clip Adapter For VVDI PROG
EEPROM CLIP ADAPTER Instruction:
Use appropriate Clip cable to clip the chip. Ensure reliable electrical connecttion! Some circuit need use the probe!
Probe Instruction:
Need to decide whether to use it with a specific circuit.Connect “GND” of cable and hook MCU Xtal pin to avoid the impact of MCU on R&W
Cable definition:
Black wire-Clip Pin 1White wite-Clip pin 2Gray wire-Clip Pin 3Purple wire-Clip Pin 4Blue wire-Clip pin 5Green wite-Clip pin 6Orange wire-Clip pin 7Yellow wire-Clip Pin 8Red wire-For ProbeBrown wire -For Probe
Note:
Please you use the latest software version above 4.6.1 version!
Package List:
1*Xhorse VVDI Prog EEPROM Clip Adapter
